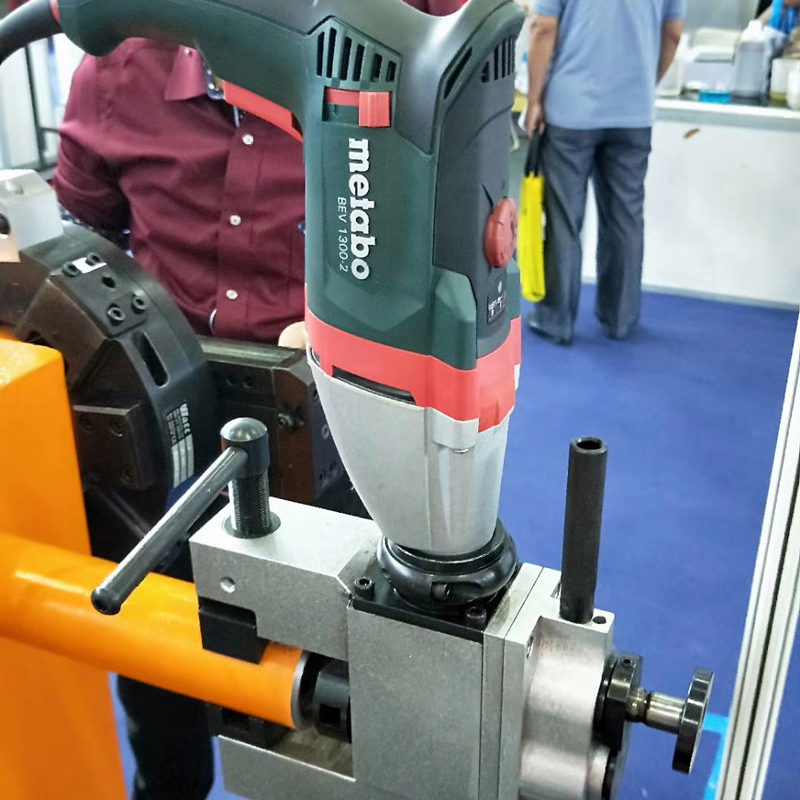

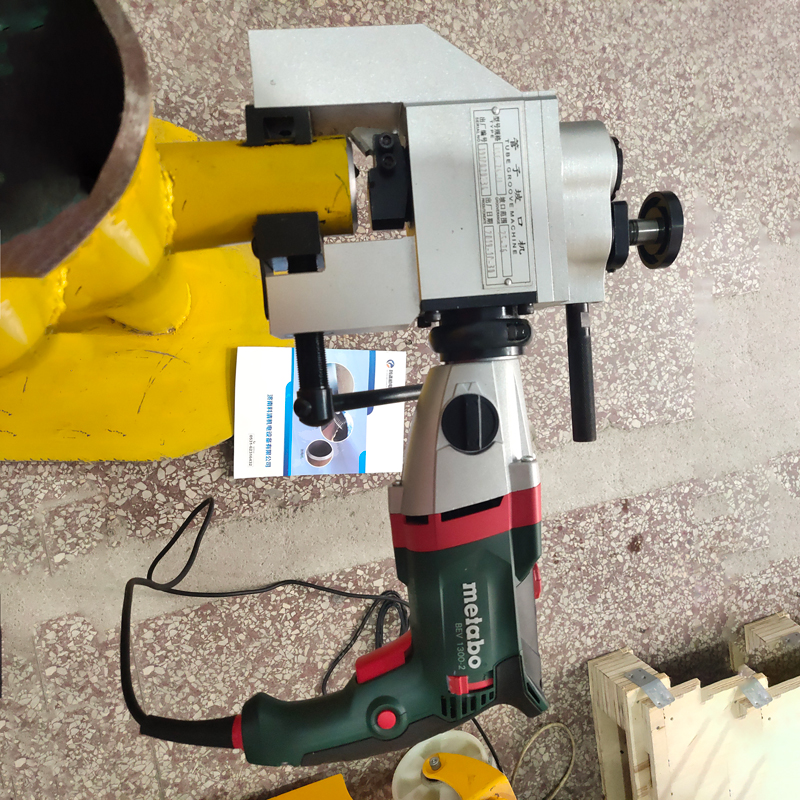

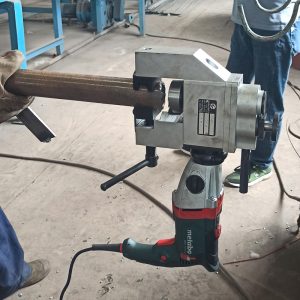

External Clamp (External Clamp) Metabo Beveling Machine (Clamping Method: Bi-directional Clamping)
Product Details The product selects the METABOA motor for power. It is characterized by high power, long life and high efficiency. With double insulation structure, customers can use it with confidence. Using this product, you can bevel ordinary steel, stainless steel, non-ferrous metals, ...
Description
marker
Product Details
The product selects the METABOA motor for power. It is characterized by high power, long life and high efficiency. With double insulation structure, customers can use it with confidence.
Using this product, you can bevel ordinary steel, stainless steel, non-ferrous metals, hard plastics and other pipes before welding. Widely used in power generation, pipeline installation, shipbuilding, chemical, natural gas, food, boilers, pharmaceuticals, nuclear power, field pipe construction and other industries commonly used in pressurized pipeline model setting, mainly used for pipe-type equipment pre-beveling production and pipeline installation project maintenance and emergency repair operations.
Technical parameters
| Specification | Scope of processing(OD mm) | Bevel wall thickness(mm) | Feed stroke(mm) | Rated power kW | Rotating speed of cutter plate(rmp) |
| C-53 | Φ8-53 | ≤8 | 0-11 | 1.43 | 58 |
| C-63 | Φ20-63 | ≤12 | 0-11 | 1.43 | 55 |
| C-73 | Φ25-73 | ≤12 | 0-11 | 1.43 | 54 |
| C-83 | Φ30-83 | ≤12 | 0-11 | 1.43 | 43 |
| ISC-53 | Φ14-53 | ≤12 | 0-12 | 1.3 | 0-58 |
| ISC-76 | Φ25-76 | ≤12 | 0-12 | 1.3 | 0-54 |
| ISC-89 | Φ63-89 | ≤12 | 0-12 | 1.3 | 0-40 |
| ISC-114 | Φ76-114 | ≤12 | 0-12 | 1.3 | 0-32 |
Advantageous features
1. Compact model, mainly for narrow working space, small pipe diameter pipe end beveling design.
2. Selection of imported METABOA motor, power, long life, stable performance.
3. High working efficiency, two-way clamping mode, automatic in and out of the knife, without manual adjustment.
4. Simple operation can cope with a variety of models of pipe processing.
5. C-type pads for the processing of different pipe diameters, different pipe diameters need to use the corresponding size of the pads.
Key Features

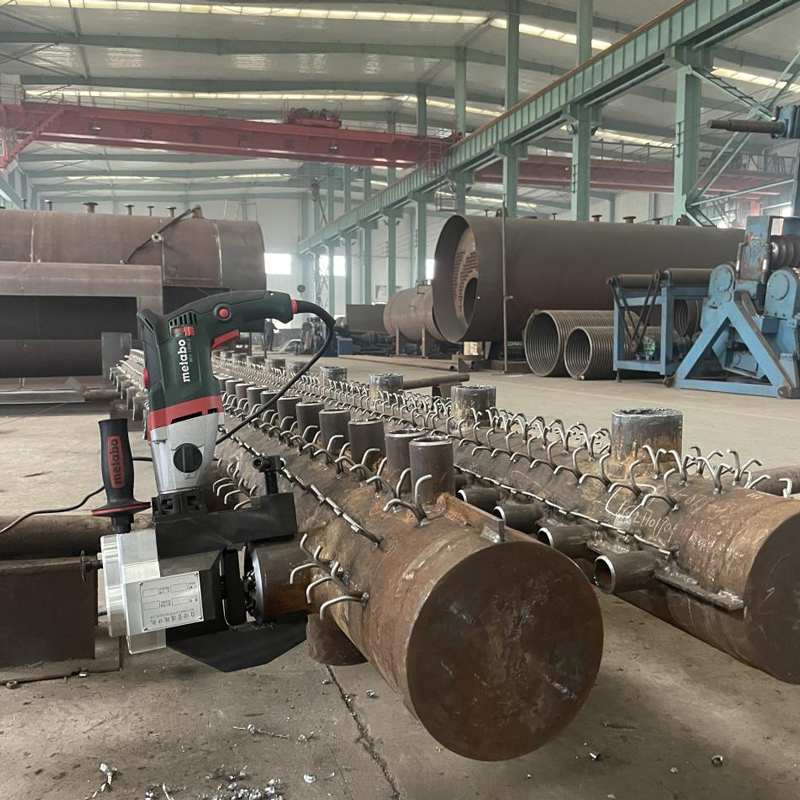

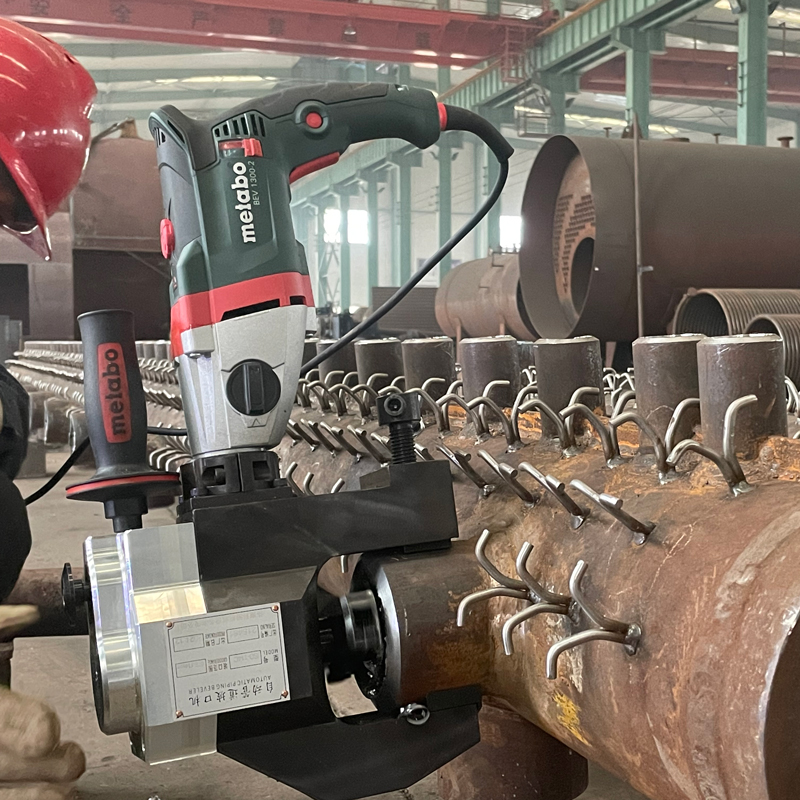

1. For water-cooled wall, boiler fins, economizer. Developed for superheaters, reheaters, etc. It is suitable for single pipe and row pipe processing.
2. Alloy cutter head, suitable for all kinds of pipe processing.
3. Equipped with METABO motor drive, strong power and low noise.
4. Optional special tool can process internal threaded pipe.
5. Wide range of equipment processing.
