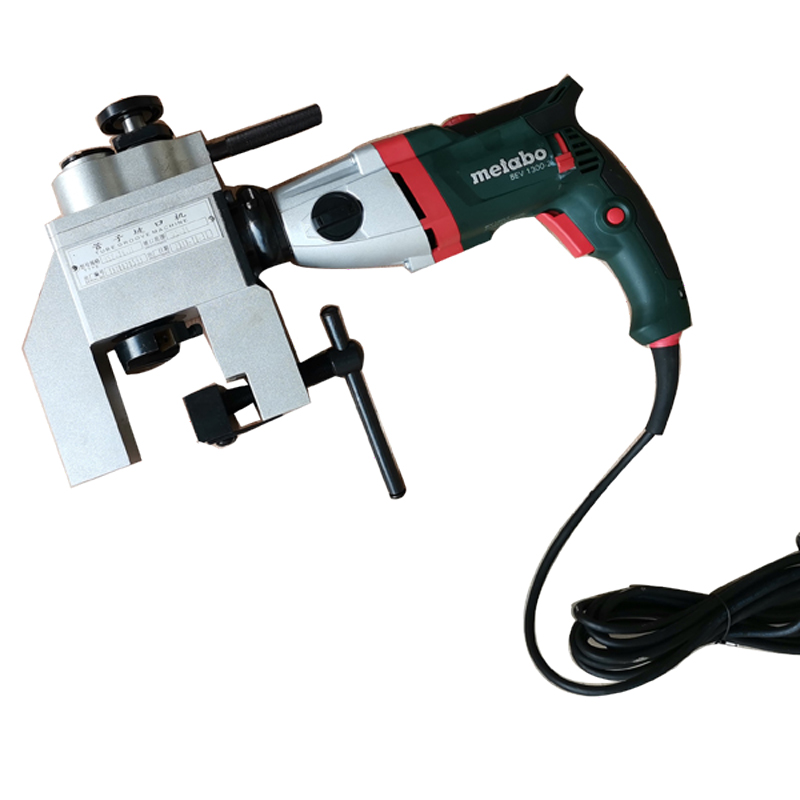

External Clamp (External Clamp) Metabo Beveling Machine (Clamping Method: Bi-directional Clamping)
-

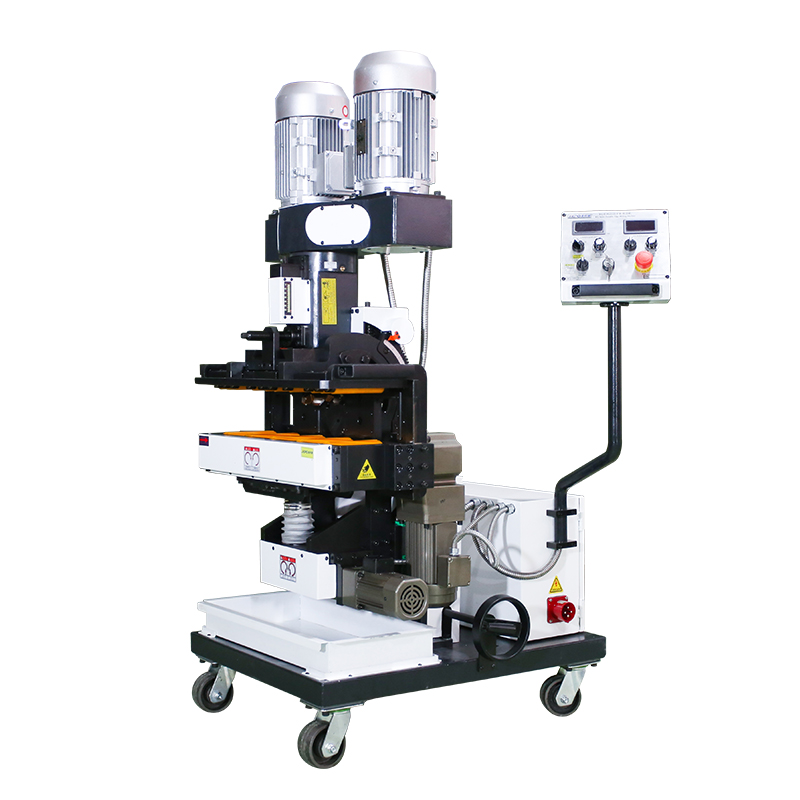

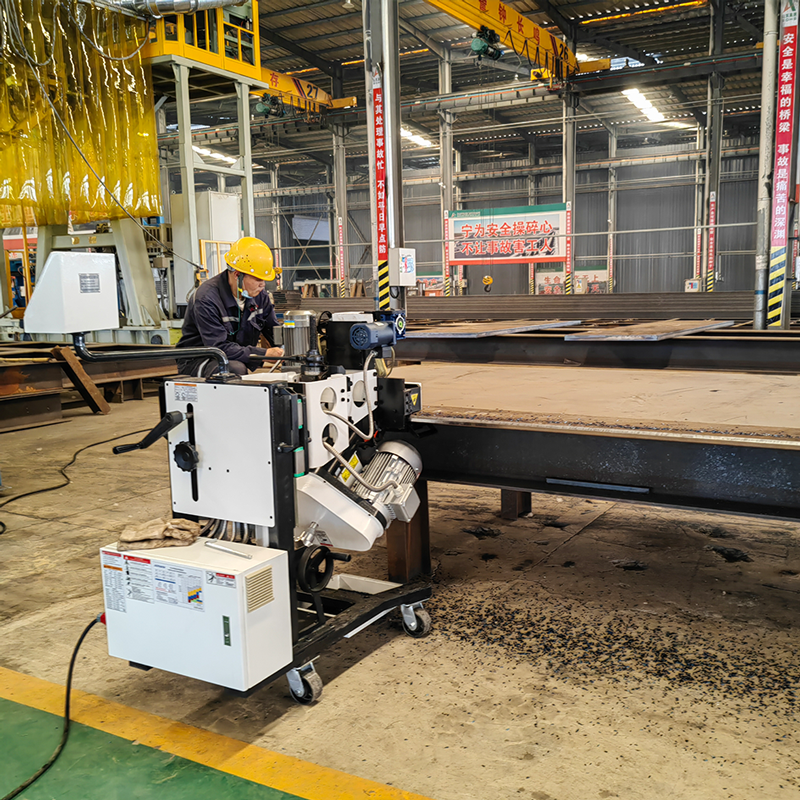

KQ-80R Double-side Double-speed Plate Edge Milling Machine
-
SKF-15 Portable Chamfering Machine
-
KQ-16W-R Double-sided automatic steel plate bevelling machine
-

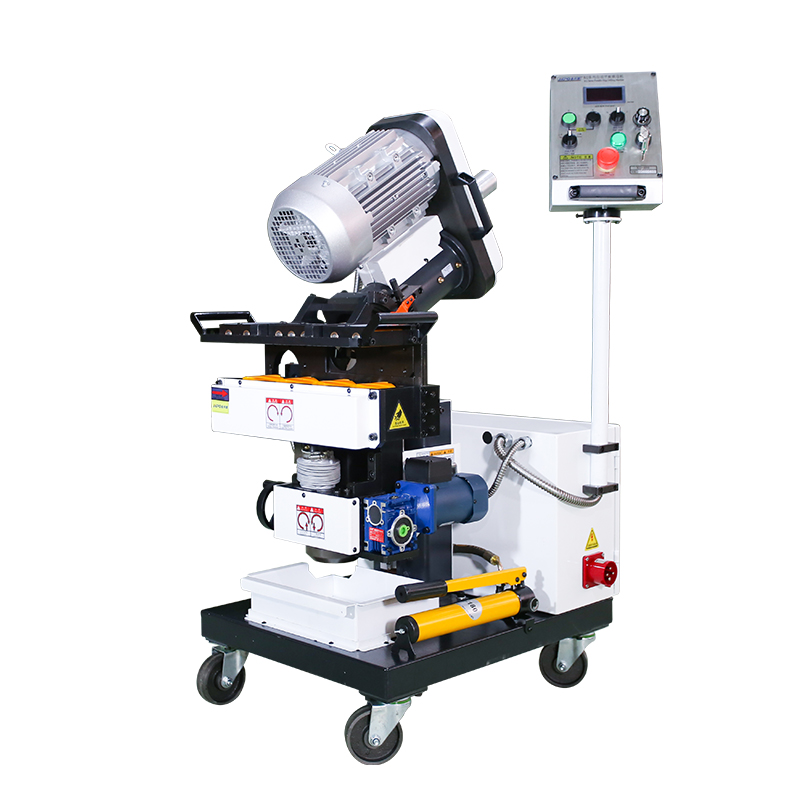

KQ-80A Double Speed Control Plate Edge Milling Machine
-

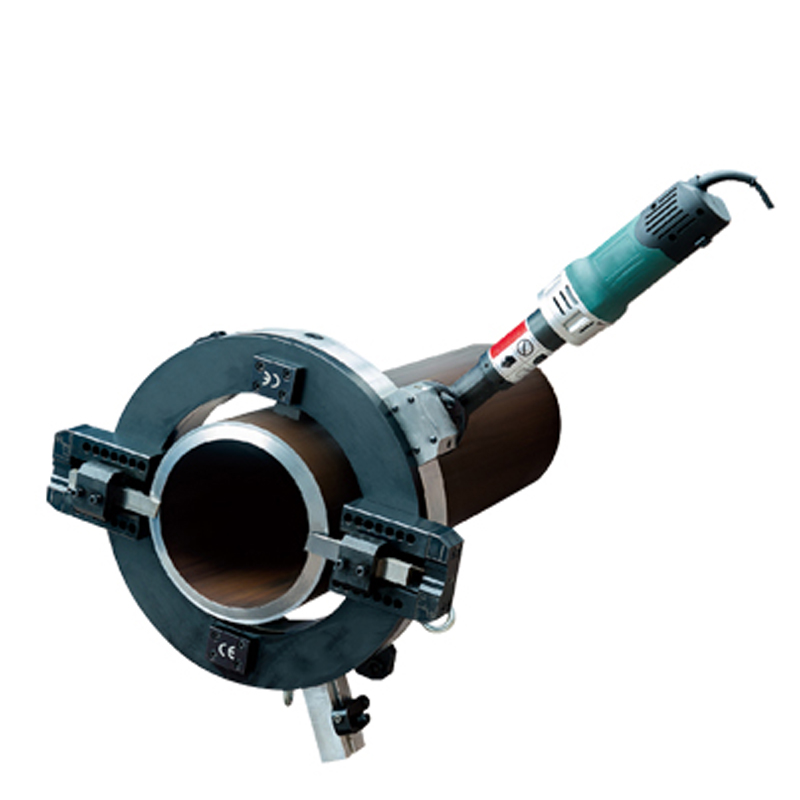

External card type electric cutting and beveling machine
-

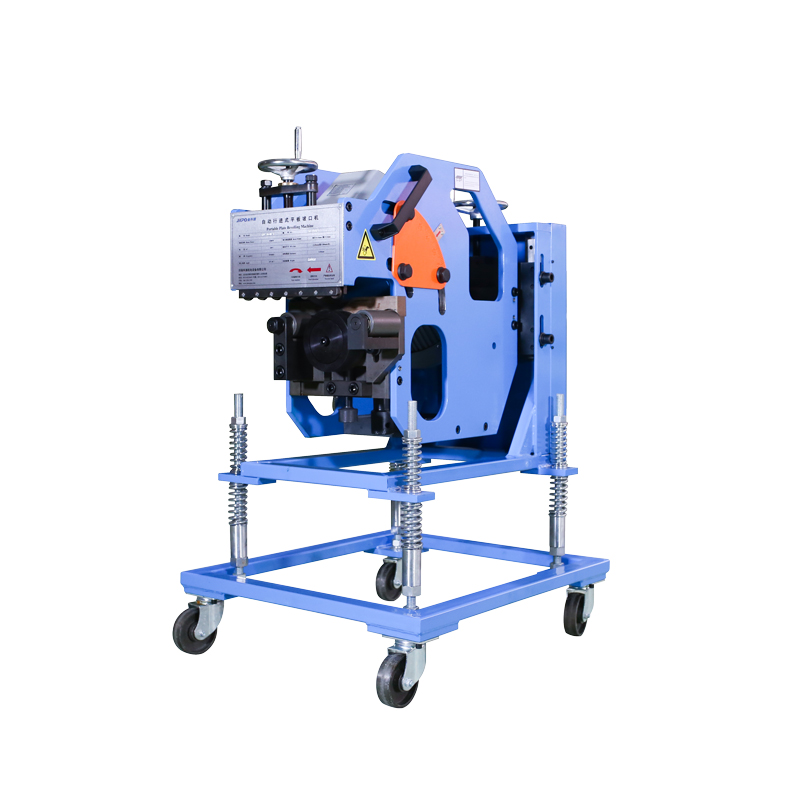

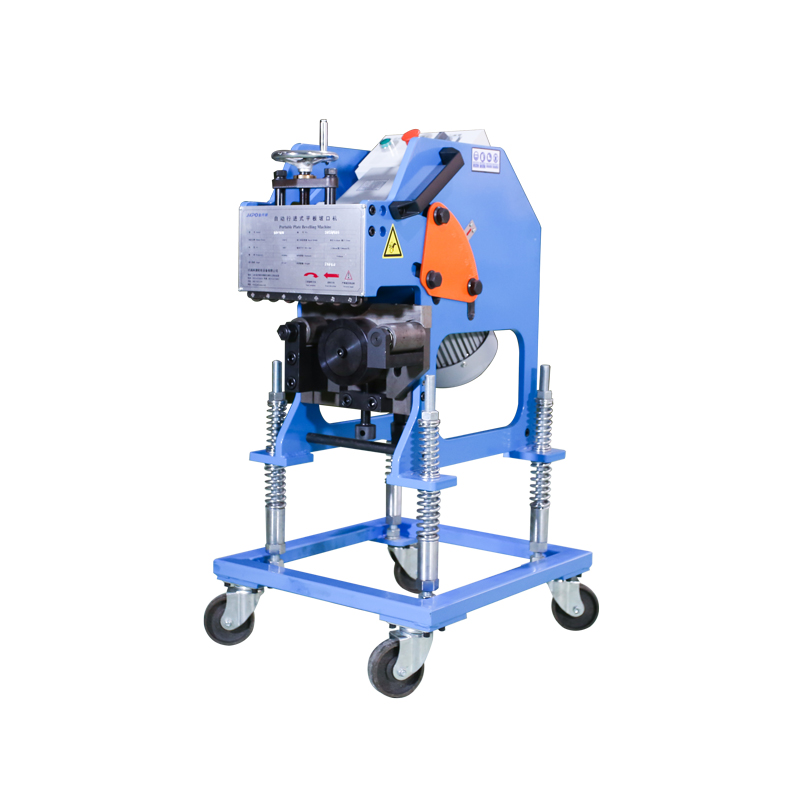

KQ-16W Automatic Steel Plate Bevelling Machine
-

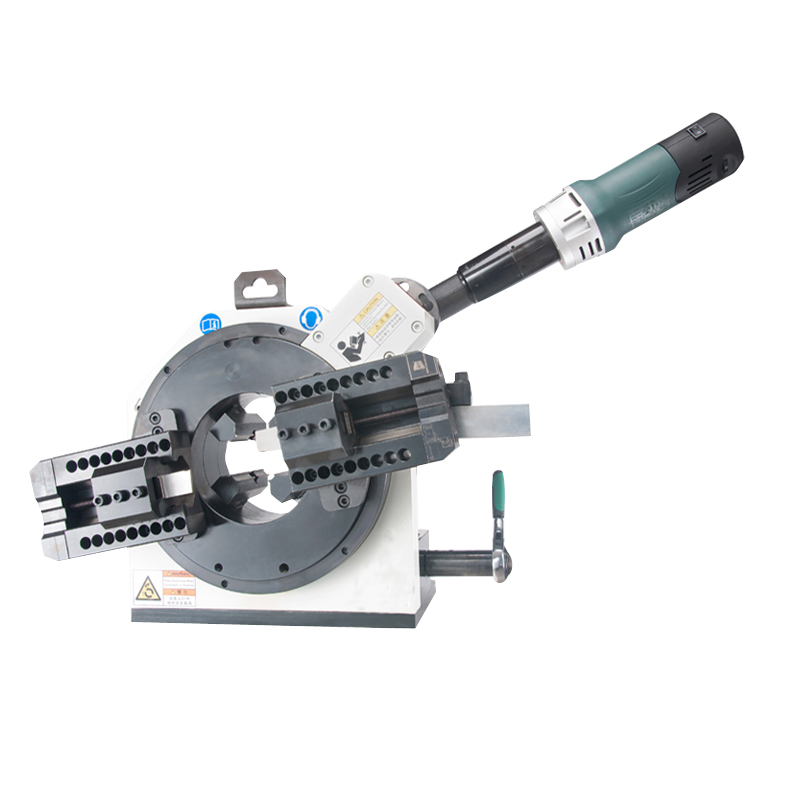

Portable tabletop pipe cutting and beveling machine
-
KQ-60S Economical Flatbed Edge Milling Machine
-
KQ-60L Multi-angle Plate Edge Milling Machine
-
KQ-100L Multi-Angle Heavy Duty Plate Edge Milling Machine

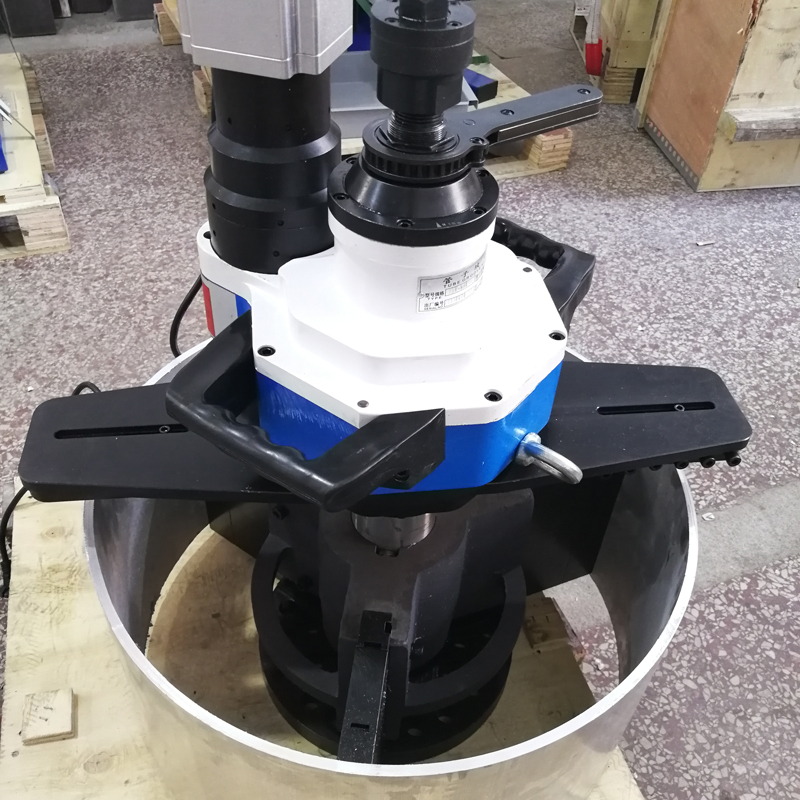

Inside rising pipe chamfering machine

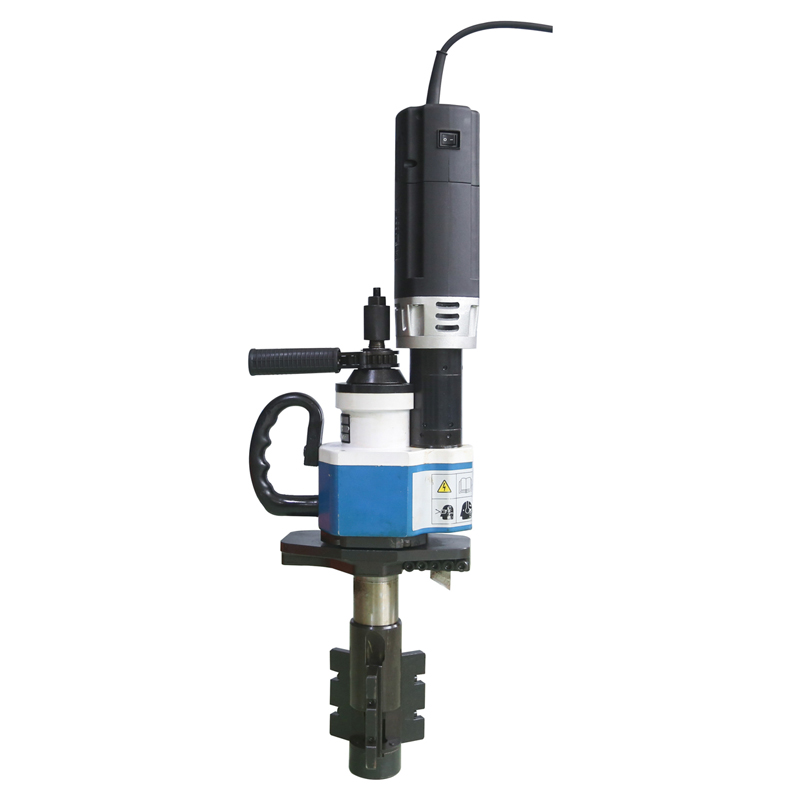

Inside rising type bevelling machine can be divided into T, Y, II type according to the design structure, adopting the principle of cold cutting processing, applicable to stainless steel, carbon steel, alloy steel and other materials, smooth bevel surface does not change the tube metallurgy, adjustable speed, fast and convenient installation, automatic positioning and centring.
Description
marker
Product Details

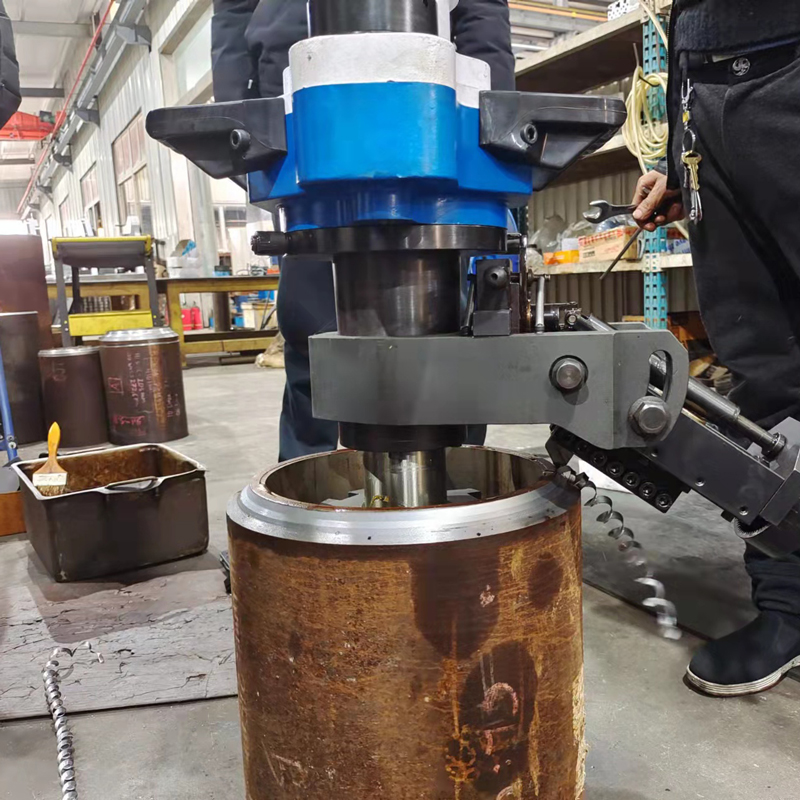

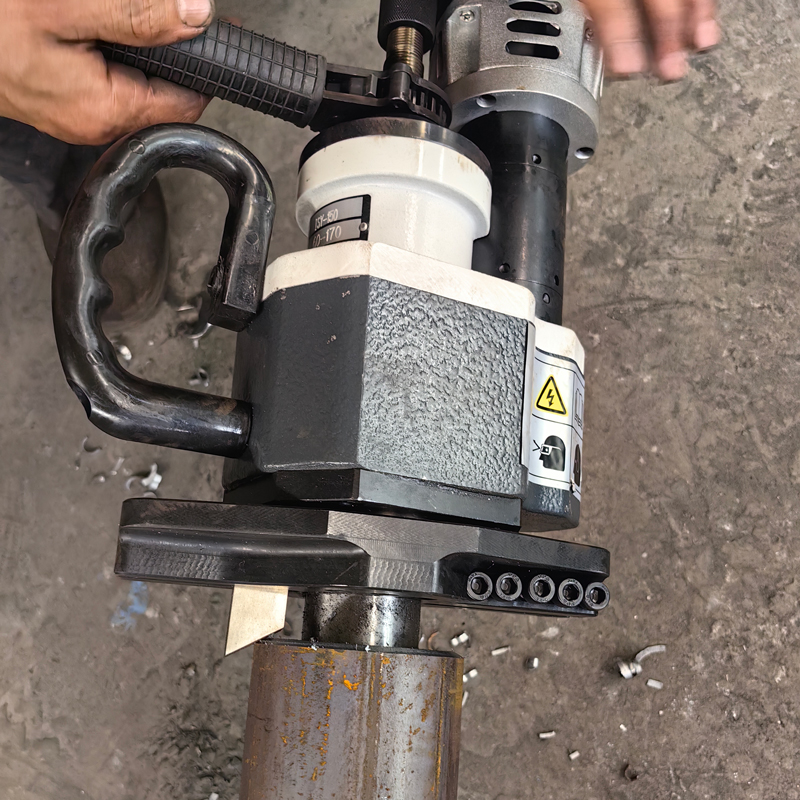

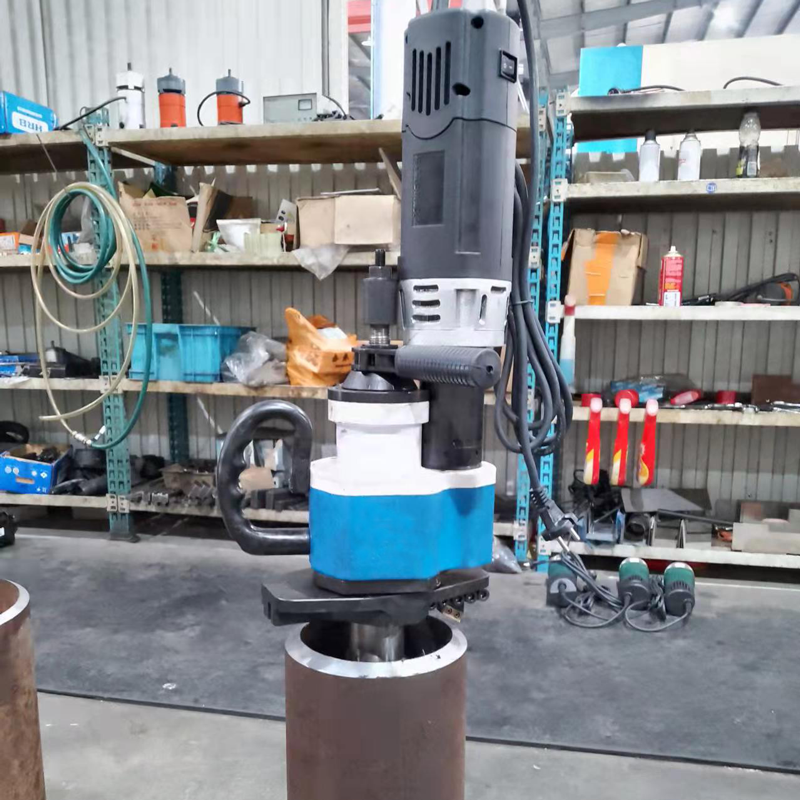

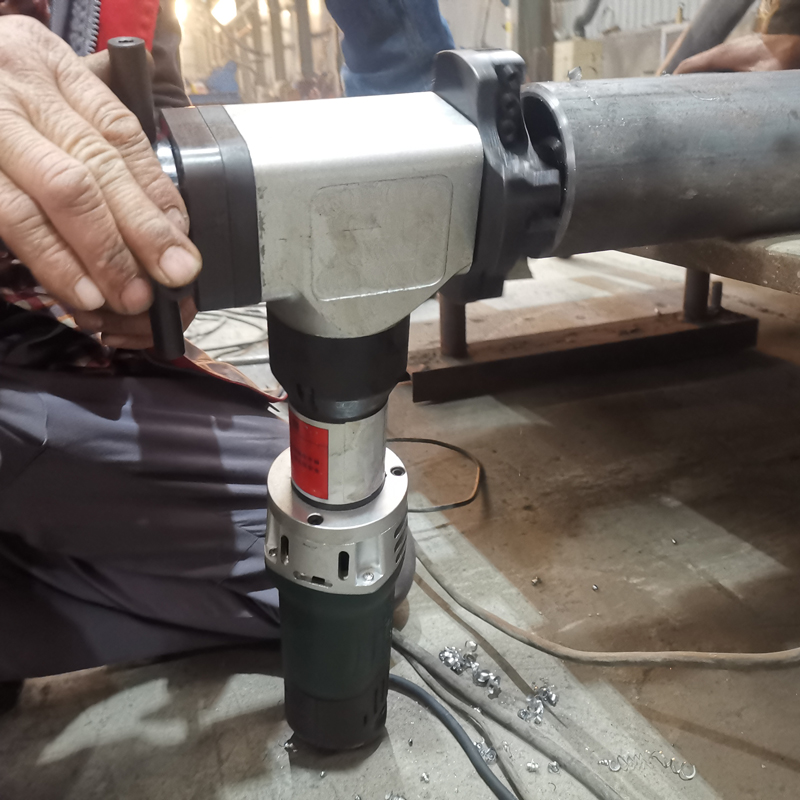

Inside rising type pipe beveling machine is specially prepared for pipe to do welding cutting beveling. The beveling machine model is easy to dismantle and install, fast centering, large cutting force, and the processing range can also be adjusted according to the model. Various shapes of beveling can be completed at once. Fast speed, cold cutting processing mode does not change the metallographic, processing surface smooth, can be used directly as welding.
Pipe beveling machine adopts mechanical cutting processing method, cold work to complete the carbon steel, stainless steel, alloy steel, cast iron and other different materials pipe welding required for a variety of end shape beveling operations. The portable design of the whole machine can realize the pipe beveling operation indoors and in the field as long as there is power supply.

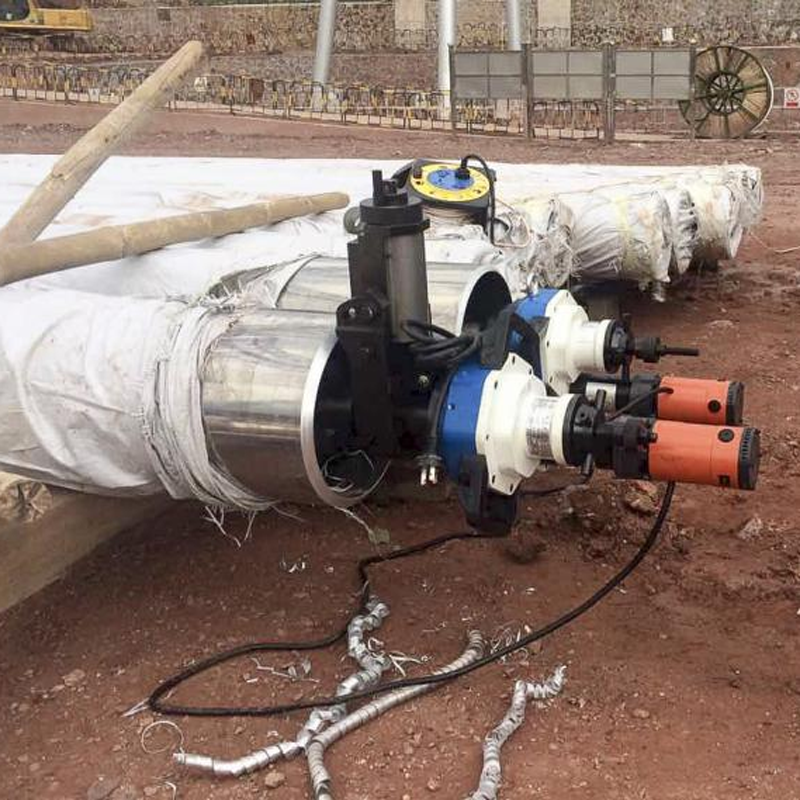

Inside rising pipe beveling machine is widely used in pipeline installation projects such as petroleum, chemical, natural gas, submarine projects, shipbuilding, boilers, pharmaceuticals, nuclear power, water conservancy projects and so on.
T-Type Y-Type Ⅱ-Type
| Technical parameters | ||||||
| Specification | Machining Inner Diameter(ID)mm | Bevelled wall thickness mm | Motor power kW | Rotating speed of cutter r/min | Feed stroke mm | Weight per unit kg |
| ISY-28-1 | Φ12.5-15 | ≤3 | 1.43 | 0~70 | 25 | 12 |
| ISY-28-2 | Φ15-20 | ≤5 | 1.43 | 0~70 | 25 | 12 |
| ISY-28-3 | Φ20-28 | ≤6 | 1.43 | 0~70 | 25 | 12 |
| ISY-80T | Φ28-76 | ≤15 | 1.43 | 0~53 | 25 | 12 |
| ISY-120 | Φ45-105 | ≤15 | 1.43 | 0~34 | 25 | 18 |
| ISY-150 | Φ60-170 | ≤15 | 1.43 | 0~34 | 40 | 22 |
| ISY-250 | Φ80-240 | ≤15 | 1.43 | 0~16 | 40 | 42 |
| ISY-351 | Φ150-330 | ≤15 | 1.43 | 0~10 | 50 | 60 |
| ISY-457 | Φ250-430 | ≤15 | 1.43 | 0~9 | 50 | 80 |
| ISY-630 | Φ300-600 | ≤15 | 2 | 0~8 | 50 | 130 |
| ISY-850 | Φ600-820 | ≤15 | 2 | 0~7 | 50 | 200 |
| ISY-250-Ⅱ | Φ80-240 | ≤75 | 1.43 | 0~16 | 40 | 47 |
| ISY-351-Ⅱ | Φ150-330 | ≤75 | 1.43 | 0~14 | 50 | 65 |
| ISY-630-Ⅱ | Φ300-600 | ≤75 | 2 | 0~10 | 50 | 140 |
| ISY-850-Ⅱ | Φ800-820 | ≤75 | 2 | 0~7 | 50 | 210 |
Advantages of Portable Internal Rising Beveling Machine
1. Light weight and easy to carry.
2. Cold cutting, does not affect the material, suitable for stainless steel, carbon steel, alloy steel multi-specification material beveling.
3. The tensioning mechanism can be automatically centered, fast installation, convenient operation and high processing efficiency.
4. Applicable to various grades of carbon steel, stainless steel and alloy steel and other materials such as pipe “V” and “U” type weld beveling, chamfering and flattening processing, but also can be welded convex flange and plane flange cutting and beveling process.
5. The design of automatic tool feeding structure, easy to operate, cutting volume can be fine-tuned, bevel angle 0 °, 30 °, 37 °, -15 ° (internal bevel).
6. Drive diversification, can meet the use in different occasions.
7. According to the design structure, it can be categorized into T, Y and II types.
8. Mainly used in pipeline installation works and emergency repair operations in petroleum, chemical, natural gas, food, pharmaceutical, submarine projects, shipbuilding, boiler, pharmaceutical, nuclear power, water conservancy engineering and other industries.
