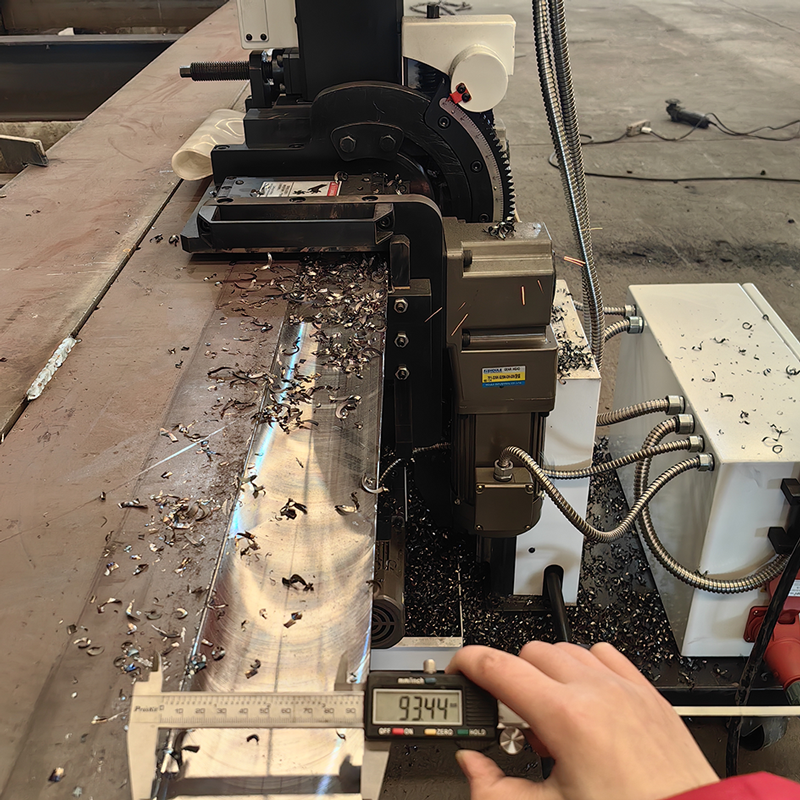

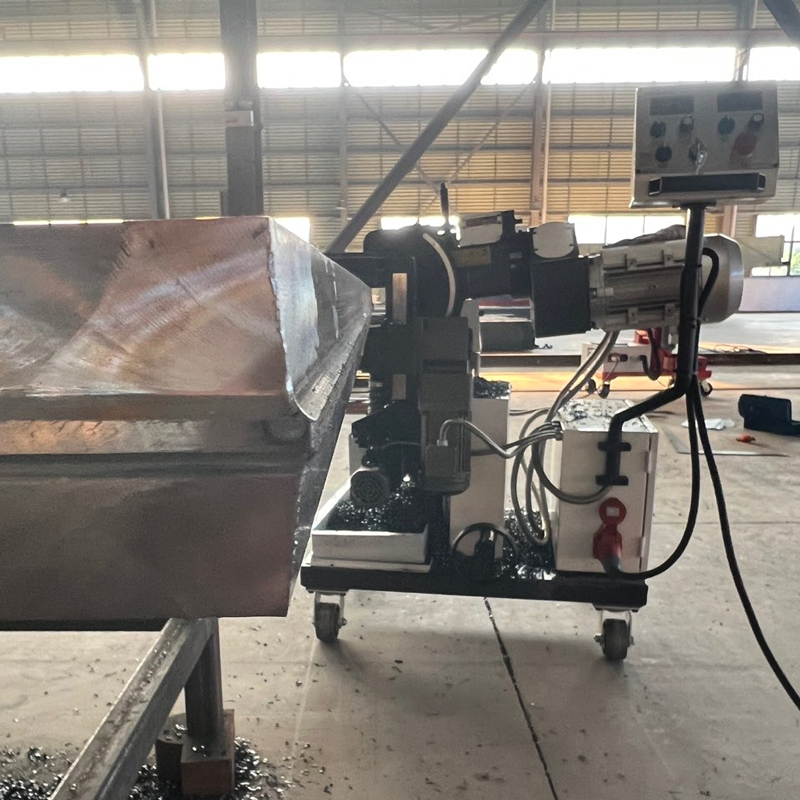

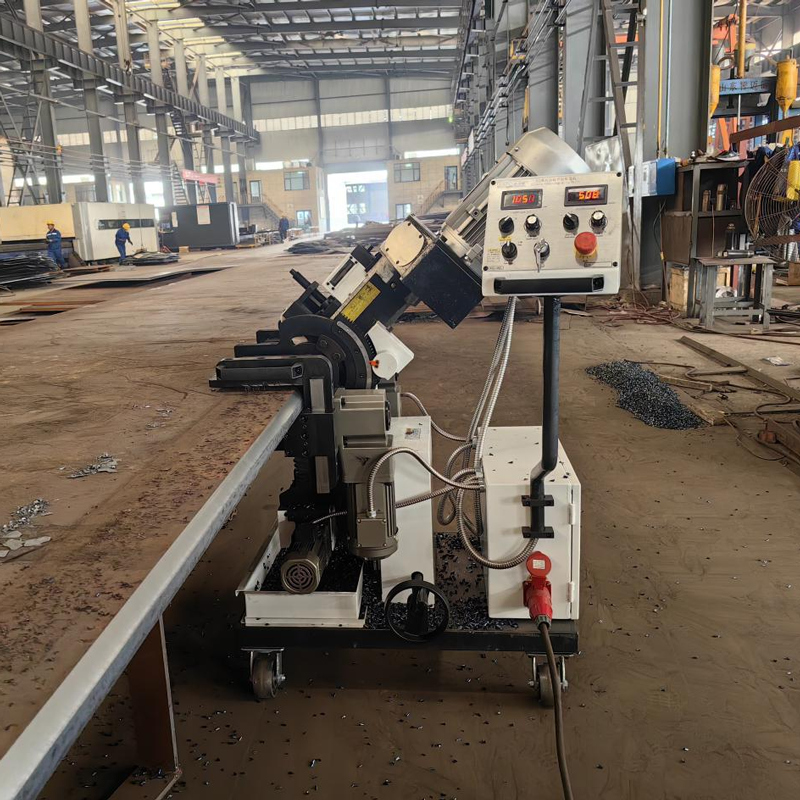

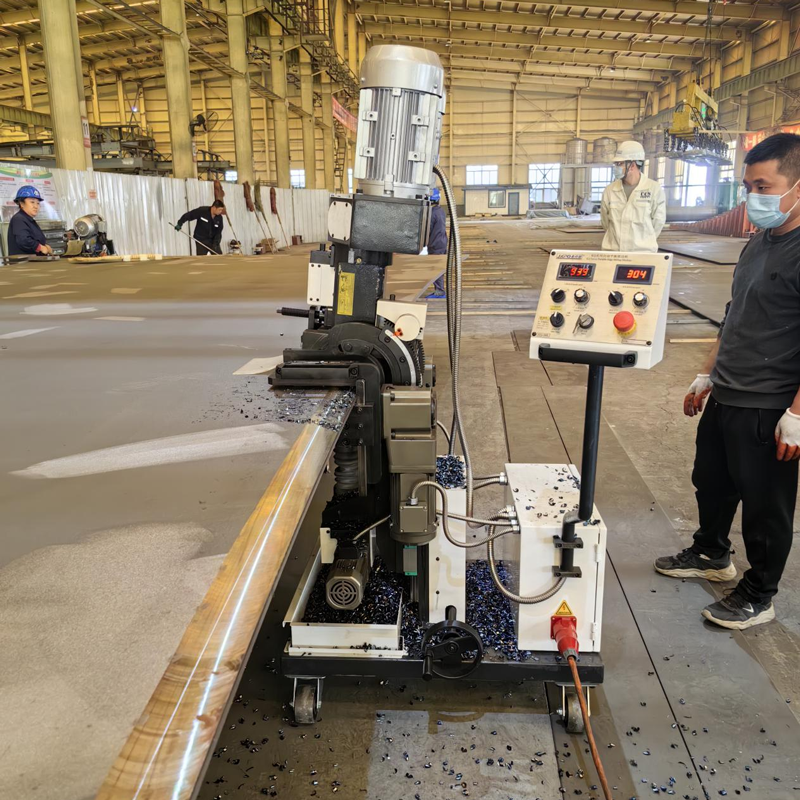

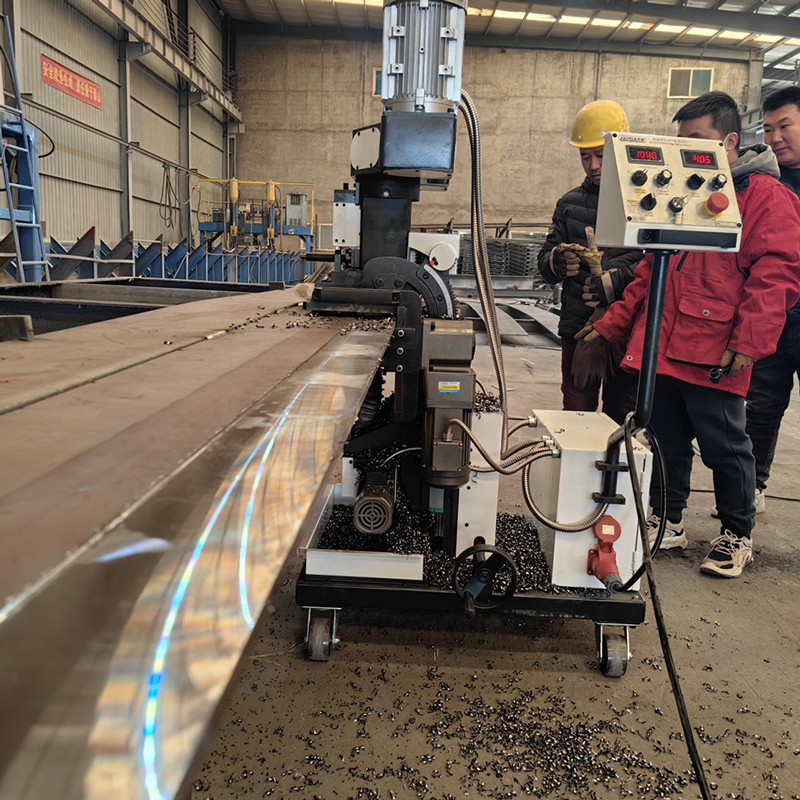

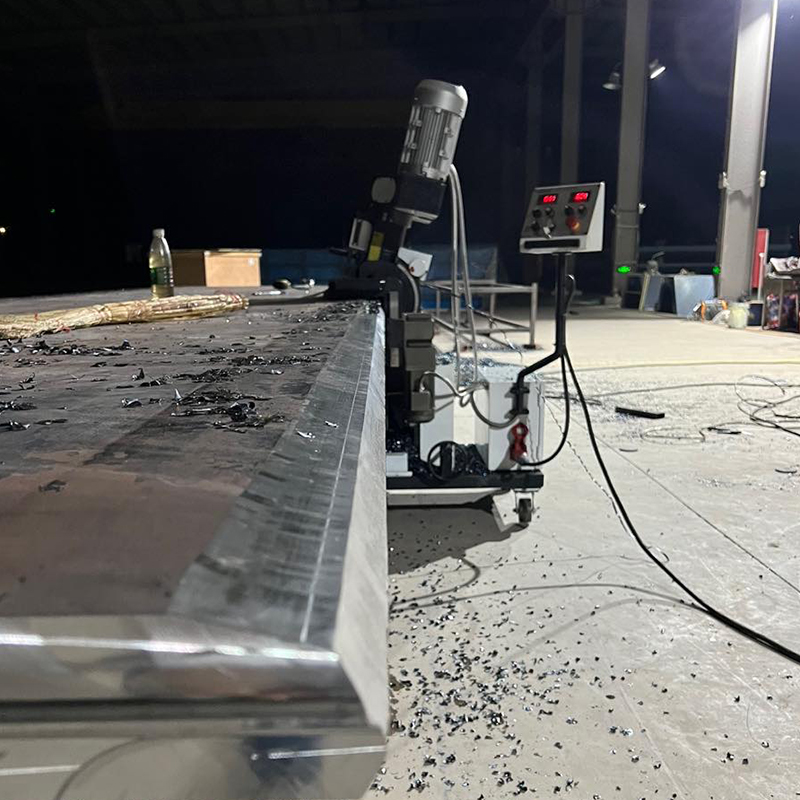

KQ-100L Multi-Angle Heavy Duty Plate Edge Milling Machine
Specification Model: KQ-100L
Total power：6920W
Spindle speed：500~1050r/min
Feed speed：0~1500mm/min
Clamping plate thickness: 8~100mm
Bevelling angle：0~90°
Bevel width: 0~100mm
Description
marker
Product Details
KQ-100L multi-angle edge milling machine, this type of milling machine can process V/Y-type bevel, U/J-type bevel, K/X-type bevel (need to turn over the workpiece), composite plate step bevel, transition bevel (maximum bevel width of 100mm) stainless steel plasma cutting after the milling operation.
|
KQ-100L Technical Parameters |
|
| power supply：AC380V 50Hz | Bevel angle：0°-90° |
| total power：6920W | Single Bevel Width：0-30mm |
| Motor speed：500-1050r/min | Bevel width：0-100mm |
| Feed rate:0-1500mm/min | Diameter of cutter plate：100mm |
| Clamping plate thickness：8-100mm | Table height：700mm |
| Clamping plate width：≥100mm | Walking Floor Area：800×800mm |
| Processing plate length：≥300mm | net weight：500Kg |
KQ-100L Multi-angle Heavy Duty Flatbed Edge Milling Machine Advantages
1. Cold cutting without deformation, smooth bevel without oxidation, bevel finish 3.2-6.3Ra, meet the pressure vessel welding requirements.
2. The bevel angle is adjustable between 0°-90°, and the clamping plate thickness is up to 100mm.
3. 24V control box and 380V electrical box separate design.
4. Double traveling motors provide powerful power.
5. Electric clamping device is easy to operate.
6. The rear position of feed motor is favorable for narrow plate processing.
7. Adopt dense tooth milling cutter disk for milling bevel.
8. The control panel is simple and the logo is clearly visible.
9. kq-100L edge milling machine can process V/Y/K/X bevel, U/J bevel and step bevel of low carbon steel, stainless steel, manganese steel, high strength steel, titanium, nickel, aluminum alloy and other metal plates.
10. Widely used in the welding and cutting manufacturing fields for steel structure, pressure vessel, engineering machinery, head processing, machining, shipbuilding, metallurgy, electric power pylons, petrochemical equipment, wind power generation and so on.
Contact us
Related Popular Products
KQ-60S Economical Flatbed Edge Milling Machine
Specification Model: KQ-60S Total power：4520W Spindle speed：1050r/min Feed speed：0~1500mm/min Clamping plate thickness: 4~60mm Bevelling angle: 0~60° Bevel width: 0~45mm
KQ-16W Automatic Steel Plate Bevelling Machine
Specification Model: KQ-16W-R Total power: 1500W Feeding speed：2.0~2.5m/min Clamping plate thickness: 8~40mm Bevelling angle：25~±45° Bevelling width: 0~22mm

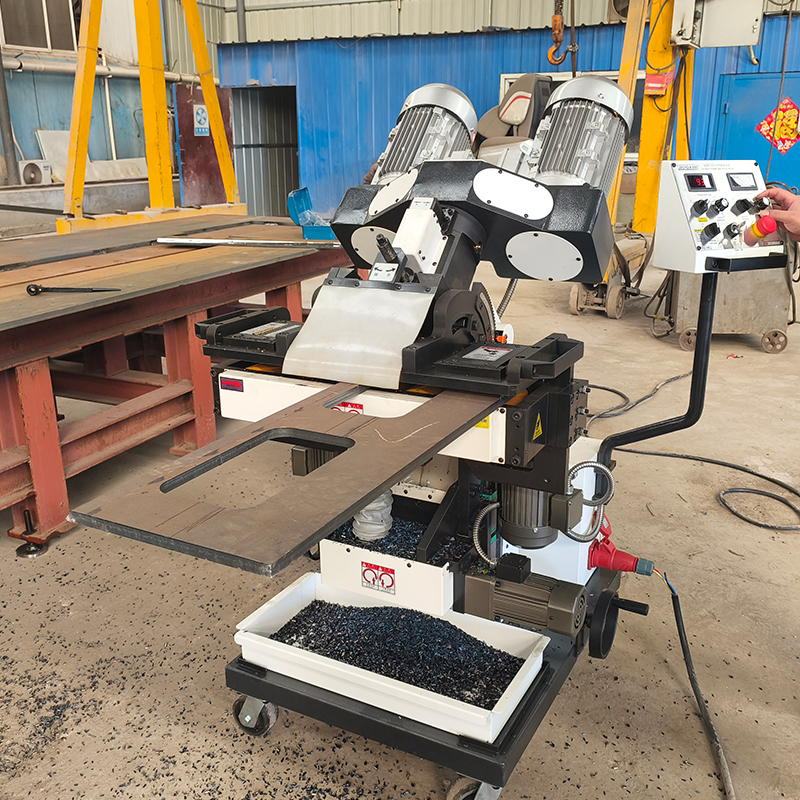

KQ-80R Double-side Double-speed Plate Edge Milling Machine
