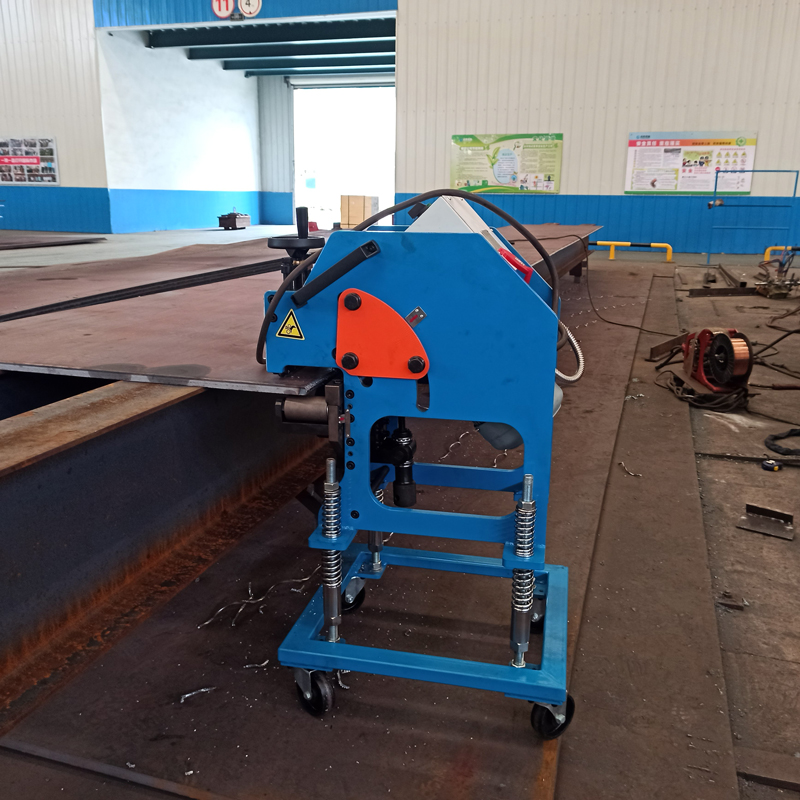

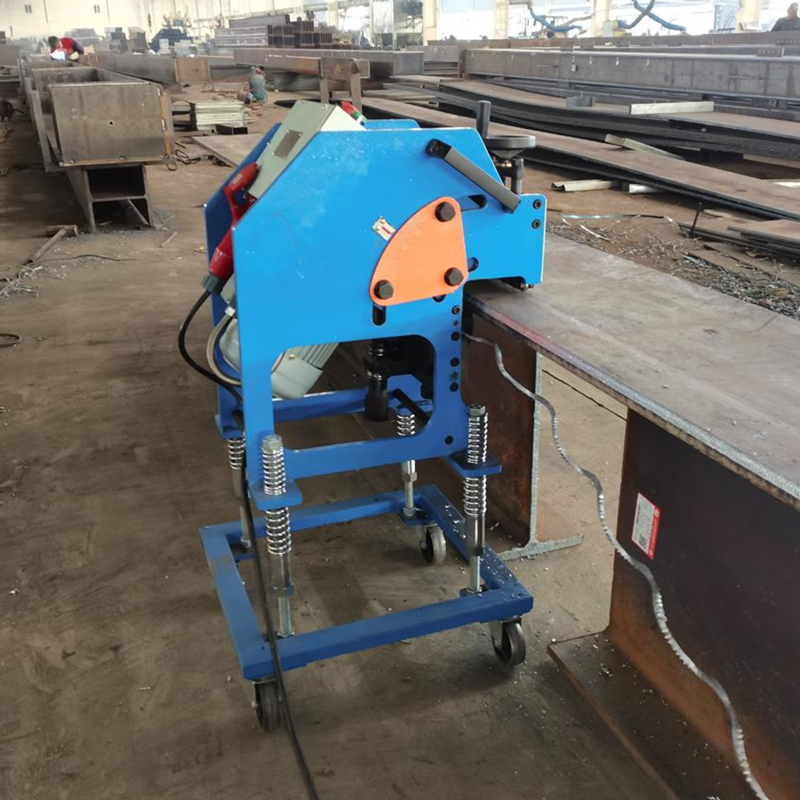

KQ-16W Automatic Steel Plate Bevelling Machine
Specification Model: KQ-16W-R
Total power: 1500W
Feeding speed：2.0~2.5m/min
Clamping plate thickness: 8~40mm
Bevelling angle：25~±45°
Bevelling width: 0~22mm
Description
marker
Product Details

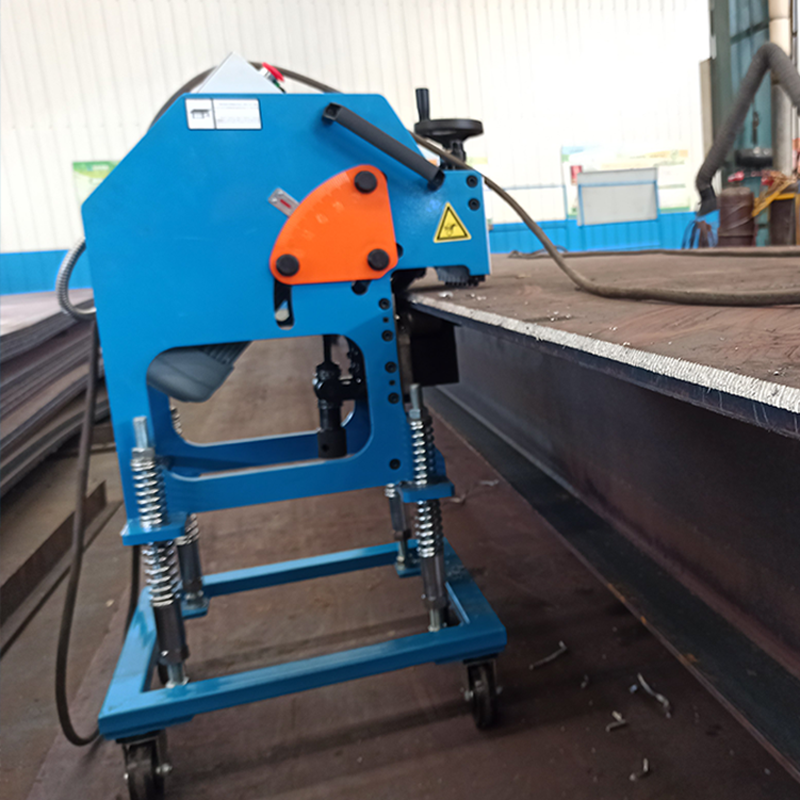

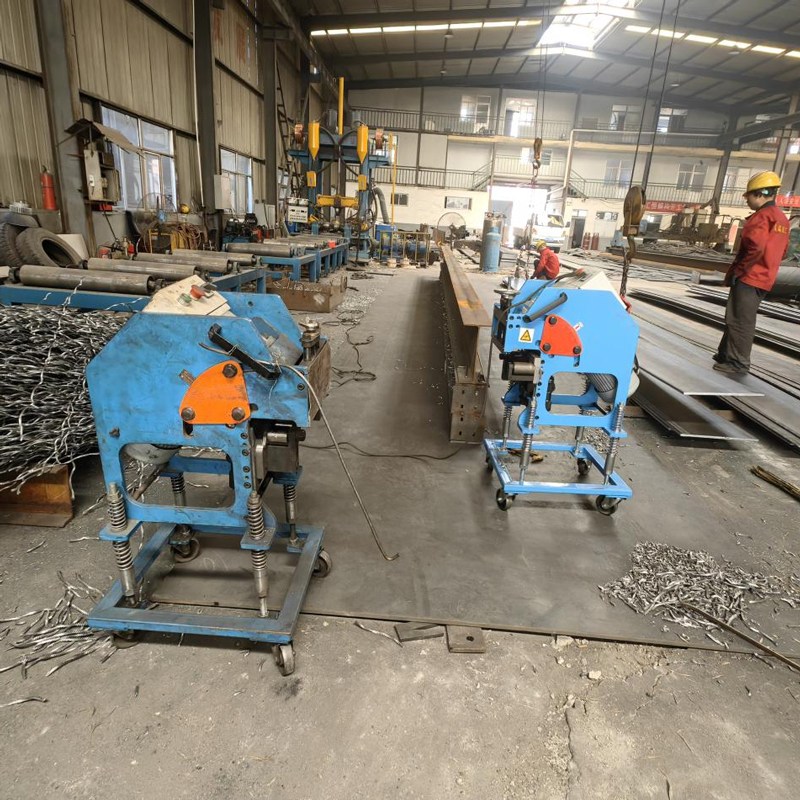

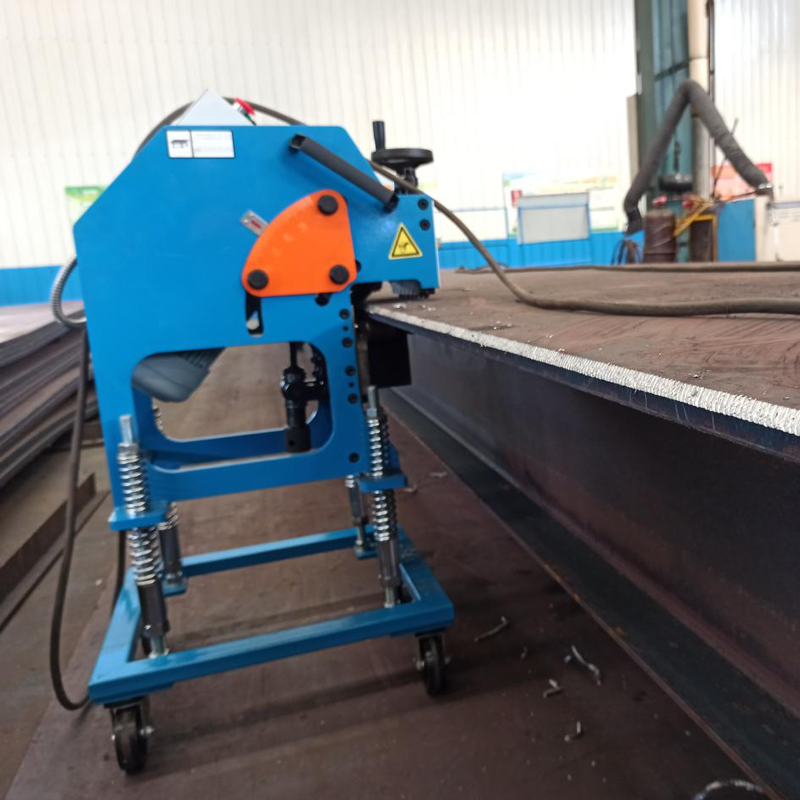

KQ-16W Automatic Steel Plate Beveling Machine, this machine is a kind of machine which adopts the working principle of blade rolling shear extrusion, cold cutting without deformation and oxidation, beveling is directly used for welding, the beveling speed is fast, up to 2.5m/min, and it adopts 1500W high energy-efficiency motor, which saves 50% of electricity consumption for you. More stable, power saving, high efficiency, quiet (almost inaudible when no load, only hear the sound of biting down the steel plate when working). Widely used in steel structure, pressure vessel, engineering machinery, machining, shipbuilding, metallurgy, electric power tower, petrochemical, wind power generation and other welding and cutting manufacturing field.
| KQ-16W Technical Parameters | |
| power supply：AC380V 50Hz | Bevel angle：25°-45° |
| total power：1500W | Single Bevel Width：14mm |
| Feed rate：2.0-2.5m/min | Diameter of cutter plate：115mm |
| Clamping plate thickness：8-40mm | Bevel width：0-22mm |
| Clamping plate width：≥120mm | Number of blades：1pcs |
| Processing plate length：≥200mm | net weight：210Kg |
Advantages of KQ-16W automatic steel plate bevelling machine

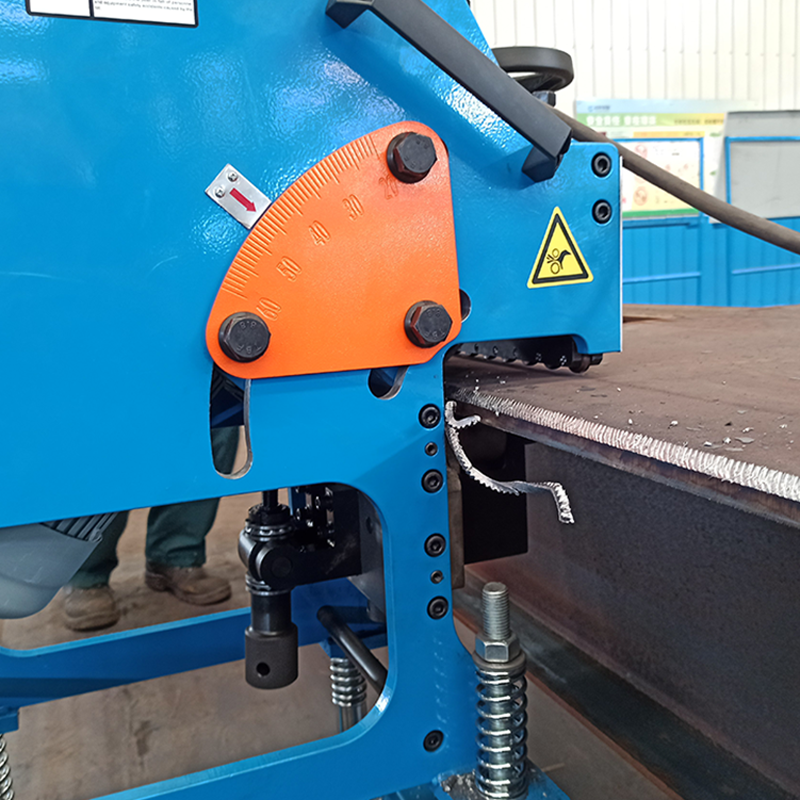

1. Rolling shear principle, cold cutting without deformation and oxidation, beveling directly for welding.

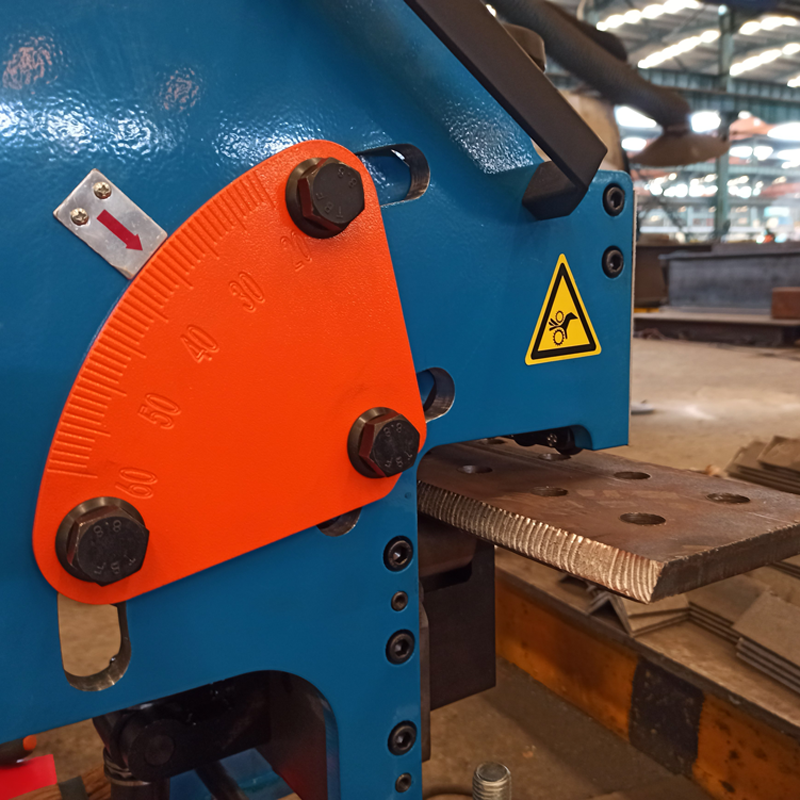

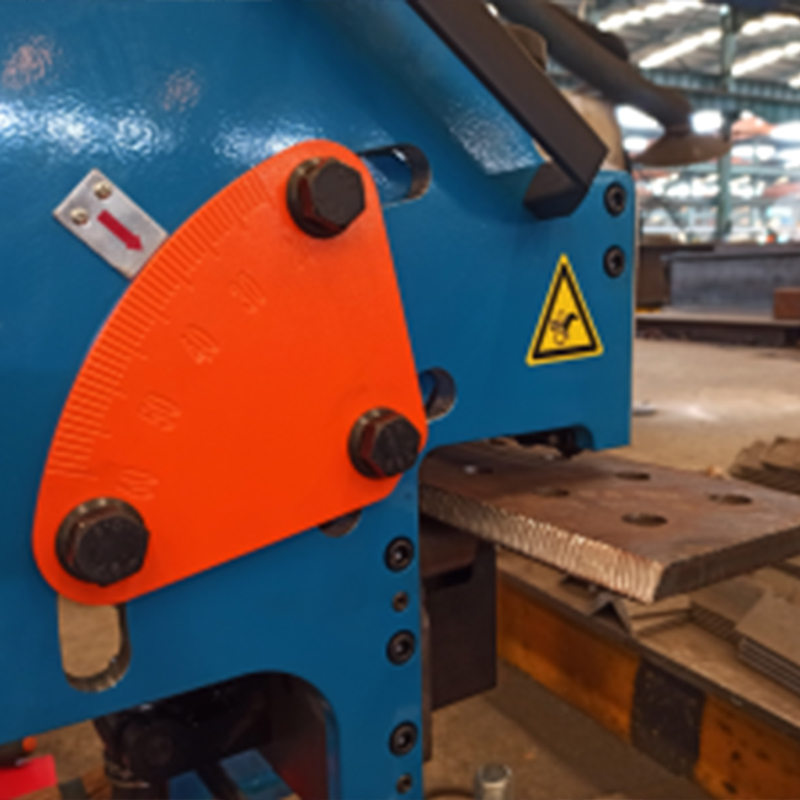

2. Beveling angle is adjustable between 25°-45°.
3. Fast beveling speed, up to 2.5m/min.
4. Spring shock absorption design, automatically adjust the body lift, adapt to the ground and plate undulation.
5. Helical gear reducer, stable performance.
6. Electrical integration, overload protection, economical and energy-saving.
7. No sparks and flying dust, easy and neat operation.
8. It can process K/X/Y/V bevel of carbon steel, manganese steel, aluminum alloy and other metal plates.
9. Widely used in welding and cutting manufacturing fields such as steel structure, pressure vessel, engineering machinery, machining shipbuilding, metallurgy, electric power tower, petrochemical industry, wind power and so on.
Product Details

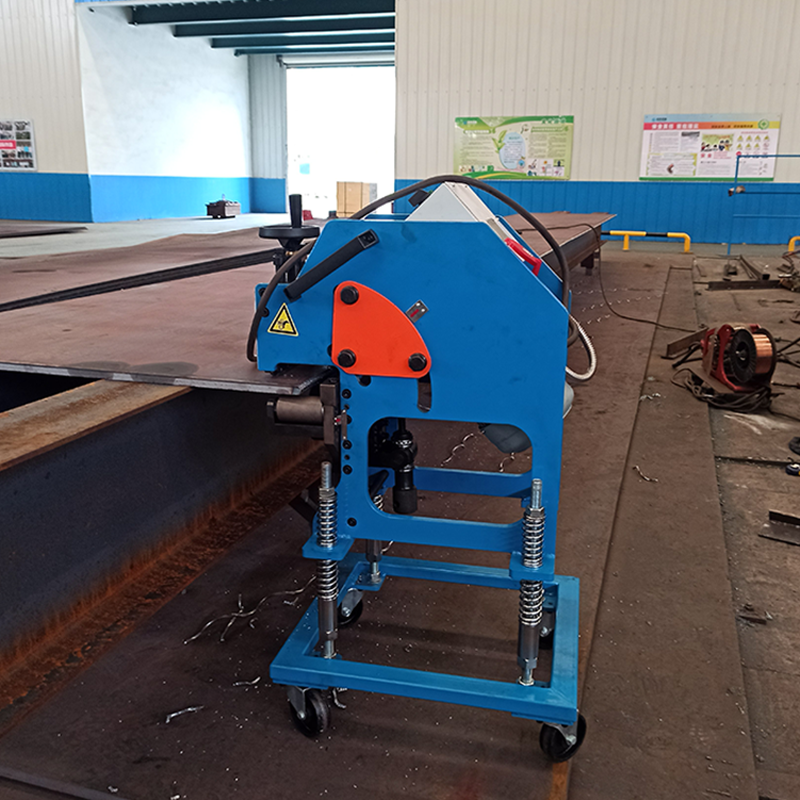

KQ-16W-R double-sided automatic steel plate beveling machine is a double-sided beveling machine designed and developed for customers with double-sided beveling processing needs, no need to turn over the plate, turn the machine head can be processed under the bevel, the use of the knife plate rolling shear extrusion type principle of work, cold cutting without deformation and no oxidation, equipped with 1500W high energy-efficiency motors, for you to save 50% of the consumption of electricity, can be processed carbon steel, manganese steel, aluminum alloy and other metal plate It can process V/Y bevel and K/X bevel of carbon steel, manganese steel, aluminum alloy and other metal plates.
| KQ-16W-R Technical Parameters | |
| power supply：AC380V 50Hz | Bevel angle：25~±45° |
| total power：1500W | Single Bevel Width：14mm |
| Feed rate：2.0-2.5m/min | Diameter of cutter plate：115mm |
| Clamping plate thickness：8-40mm | Bevel width：0-22mm |
| Clamping plate width：≥120mm | Number of blades：1pcs |
| Processing plate length：≥200mm | net weight：280Kg |
Advantages of KQ-16W-R double-sided automatic steel plate bevelling machine
1. Rolling shear principle, cold cutting without deformation and oxidation, beveling directly for welding.
2. The beveling angle is adjustable between 25~±45°.
3. Double-sided bevel processing, KQ-16W-R beveling machine without flap, turn the head can be processed under the bevel.
4. Fast beveling speed, up to 2.5m/min.
5. Spring shock absorbing design, automatically adjust the machine body lifting and lowering, adapt to the ground and plate undulation.
6. Helical gear reducer, stable performance.
7. Electrical integration, overload protection, economic and energy saving.
8. No sparks and flying dust, easy and neat operation.
9. It can process K/X/Y/V bevel of carbon steel, manganese steel, aluminum alloy and other metal plates.
10. Widely used in for steel structure, pressure vessel, engineering machinery, machining shipbuilding, metallurgy, electric power tower, petrochemical, wind power generation and other welding and cutting manufacturing fields.
