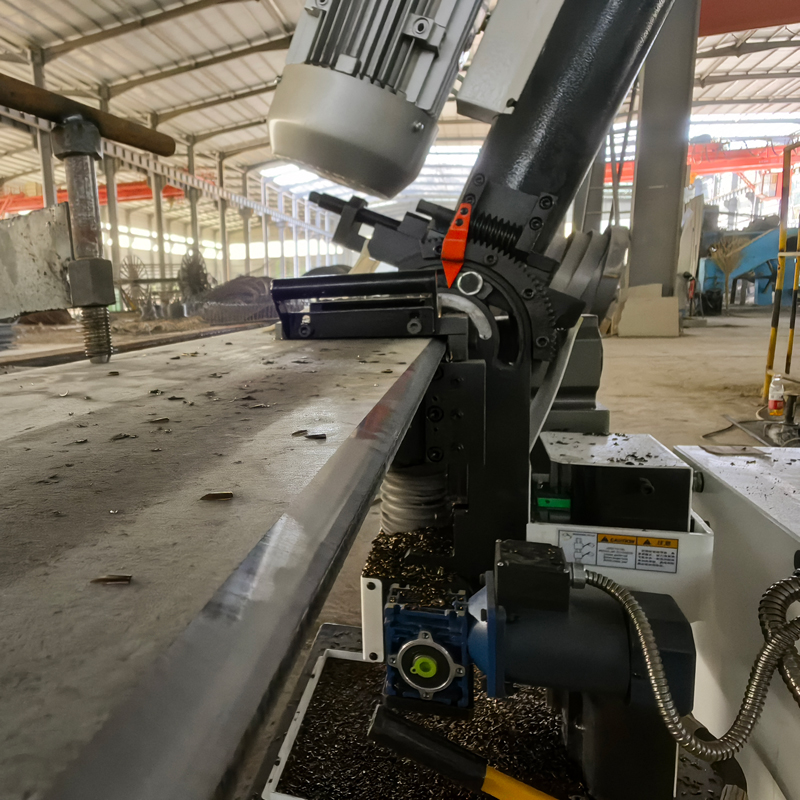

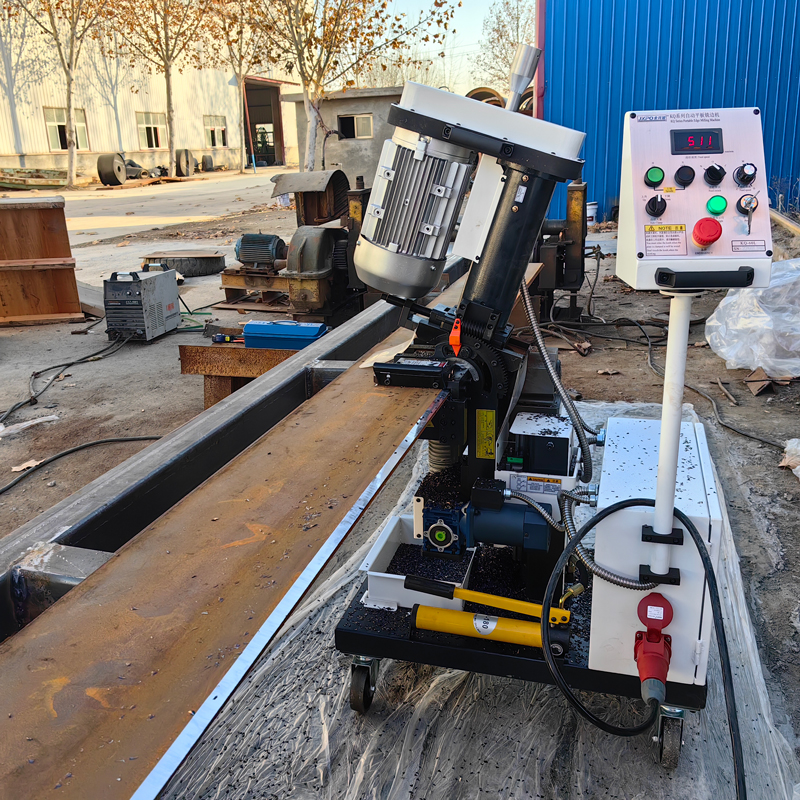

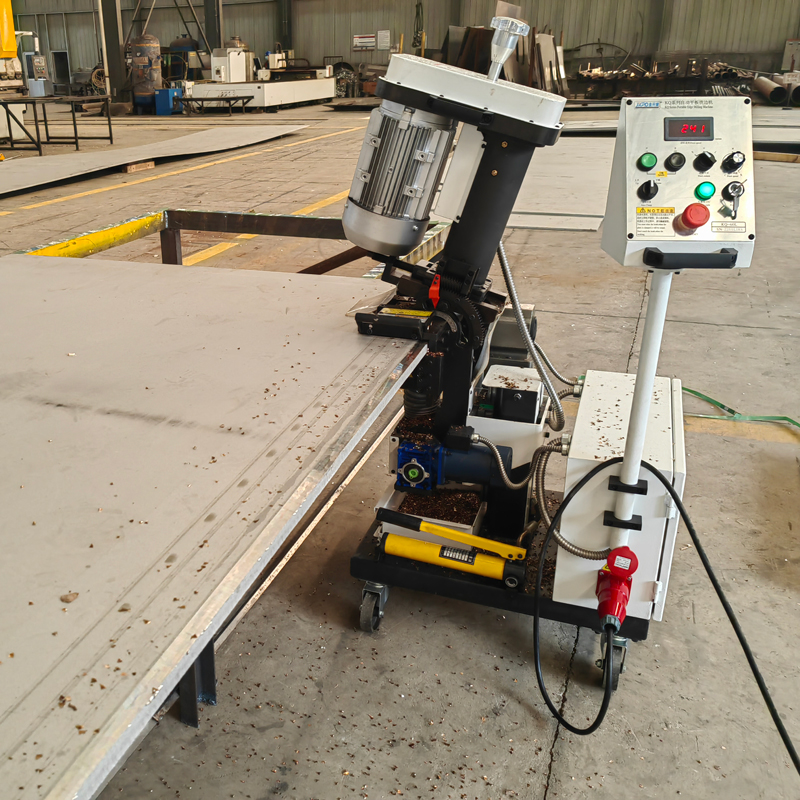

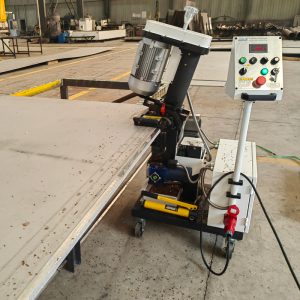

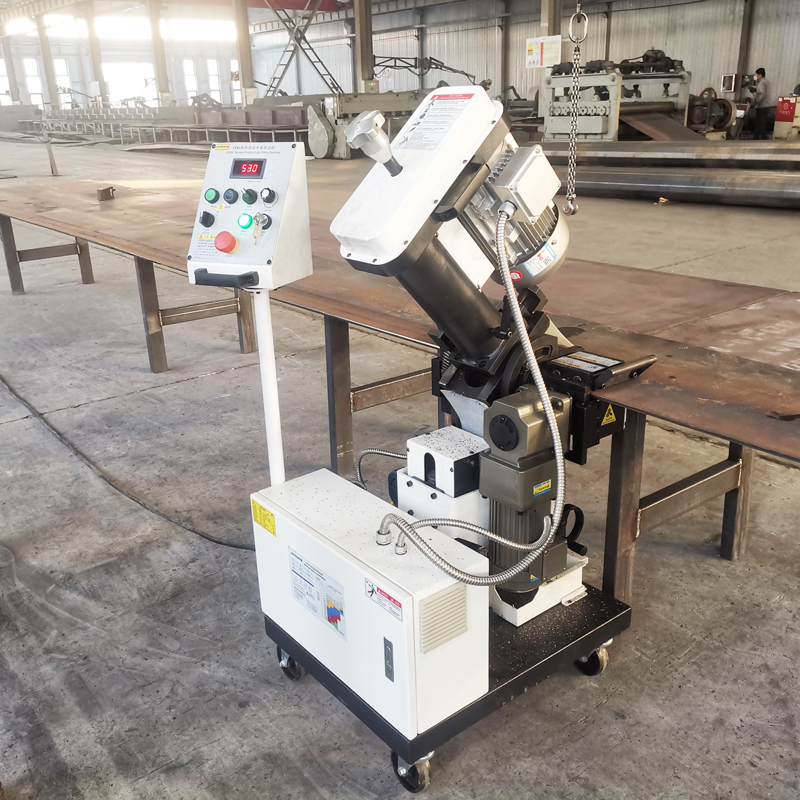

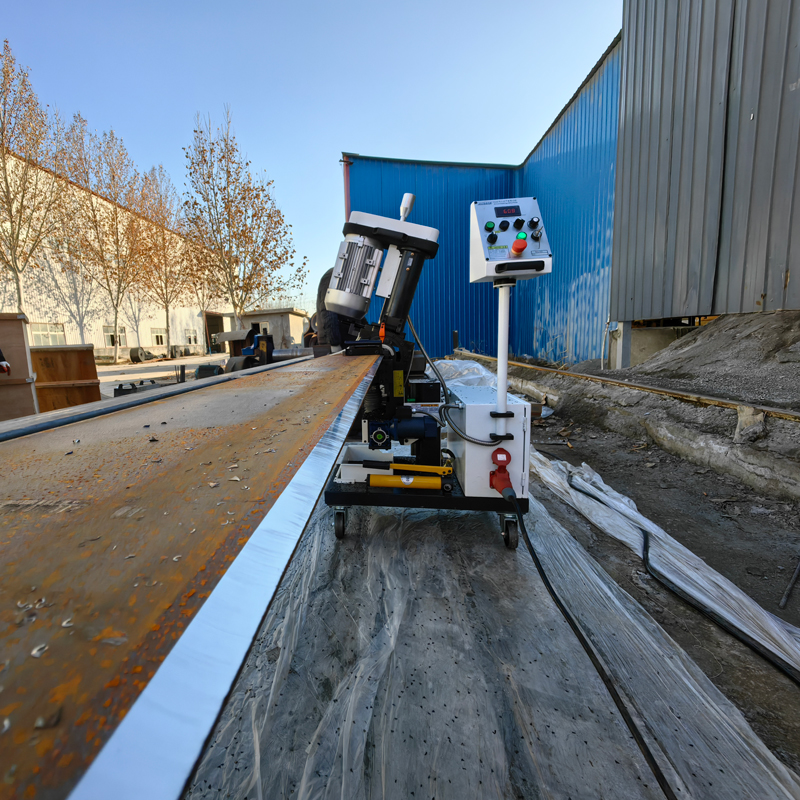

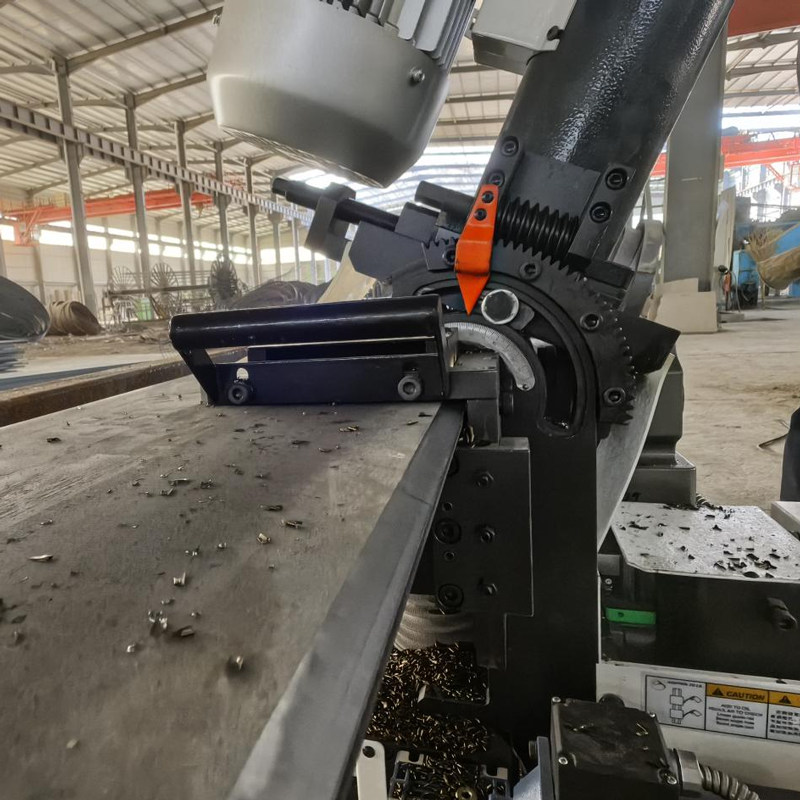

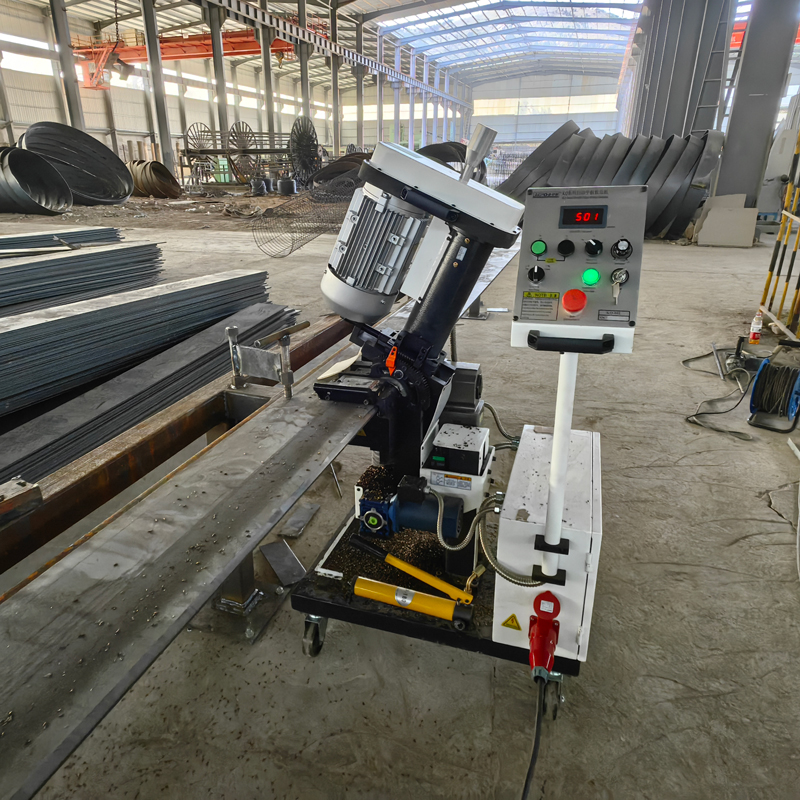

KQ-60L Multi-angle Plate Edge Milling Machine
Specification Model: KQ-60L
Total power：4520W
Spindle speed：1050r/min
Feeding speed：0~1500mm/min
Clamping plate thickness: 4~60mm
Bevelling angle：0~90°
Bevel width: 0~60mm
Description
marker
Product Details
KQ-60L multi-angle edge milling machine, this type of milling machine can process, V / Y-type bevel, K / X-type bevel (need to turn the workpiece), composite plate step bevel, U/J-type bevel, bevel angle 0 ° - 90 ° adjustment. Stainless steel and carbon steel bevels can be processed, and this milling machine can be easily accomplished when processing step bevels and transition bevels for composite plates. It has been widely used in beveling operations in aerospace, pressure vessels, bridge manufacturing, petrochemical, shipbuilding and other fields.
| KQ-60L Technical Parameters | |
| power supply：AC380V 50Hz | Bevel angle：0°-90° |
| total power：4520W | Single Bevel Width：0-15mm |
| Motor speed：1050r/min | Bevel width：0-60mm |
| Feed rate:0-1500mm/min | Diameter of cutter plate：63mm |
| Clamping plate thickness：4-60mm | Table height：680-700mm |
| Clamping plate width：≥60mm | Walking Floor Area：800×800mm |
| Processing plate length：≥300mm | net weight：295Kg |
Advantages of KQ-60L Multi-Angle Plate Edge Milling Machine

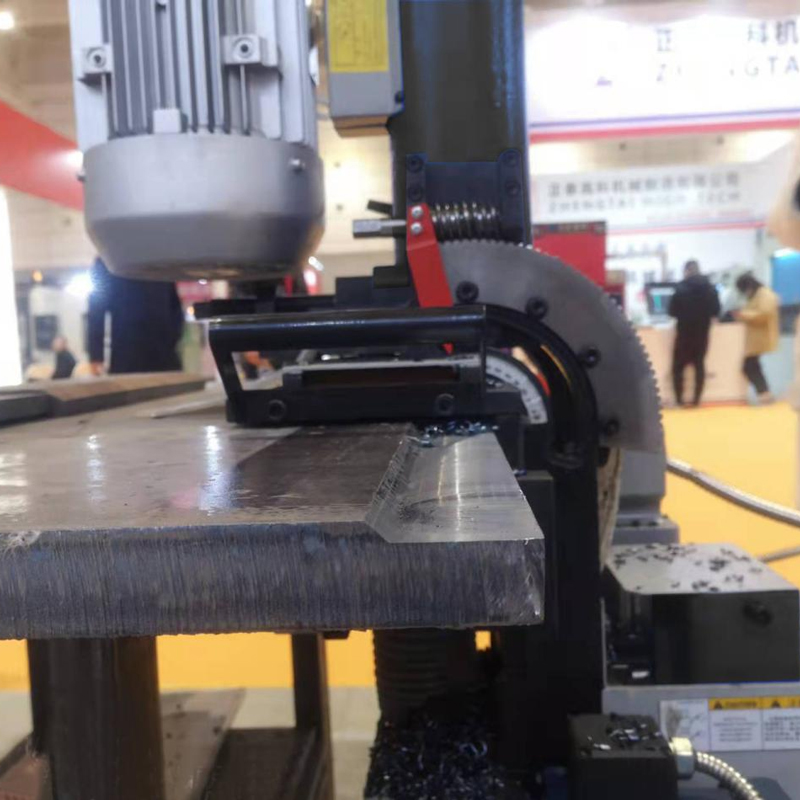

1. Cold cutting without deformation, smooth bevel without oxidation, bevel finish 3.2-6.3Ra, meet the pressure vessel welding requirements.
2. Bevel angle is adjustable between 0°-90°.
3. 24V control box and 380V electrical box are designed separately.
4. Electric clamping device is easy to operate.
5. The rear position of feeding motor is favorable for narrow plate processing.
6. The base is enlarged to prevent the machine body from tilting, eliminating unnecessary hidden danger.
7. KQ-60L edge milling machine can process V/Y bevel, K/X bevel, U/J bevel and step bevel of low carbon steel, stainless steel, manganese steel, high-strength steel, titanium, nickel, aluminum alloy and other metal plates.
8. Widely used in the welding and cutting manufacturing fields for steel structure, pressure vessel, engineering machinery, machining shipbuilding, metallurgy, electric power tower, petrochemical industry, wind power generation and so on.
