KQ-80A Double Speed Control Plate Edge Milling Machine
Specification Model: KQ-80A
Total power：6520W
Spindle speed：500~1050r/min
Feed speed：0~1500mm/min
Clamping plate thickness: 4~80mm
Bevelling angle：0~60°
Bevel width: 0~70mm
Description
marker
Product Details

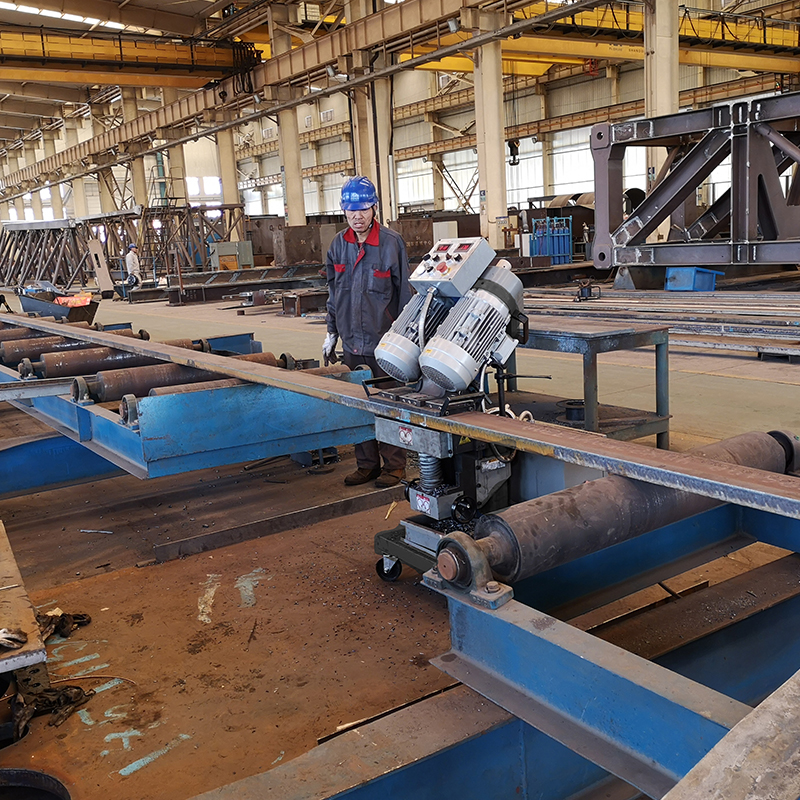

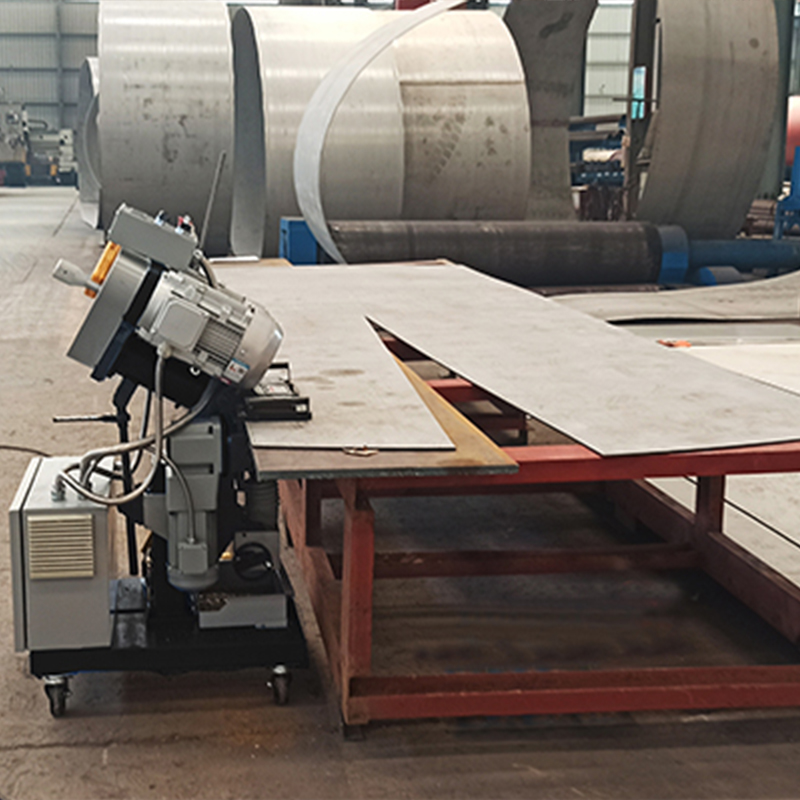

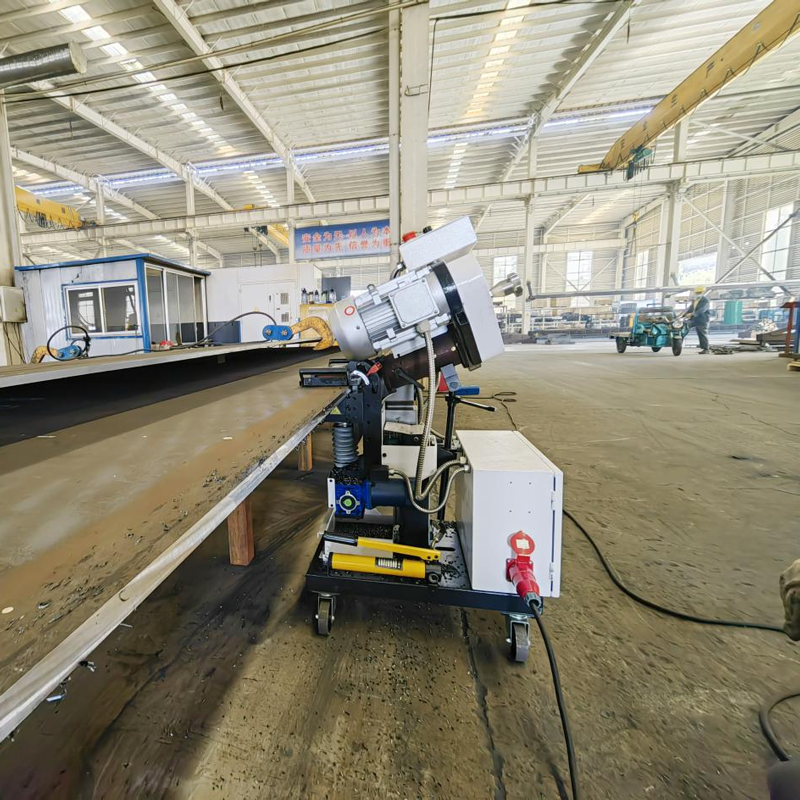

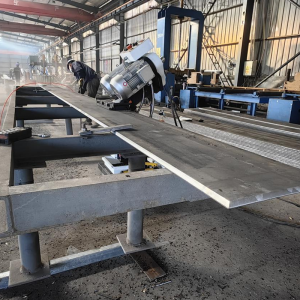

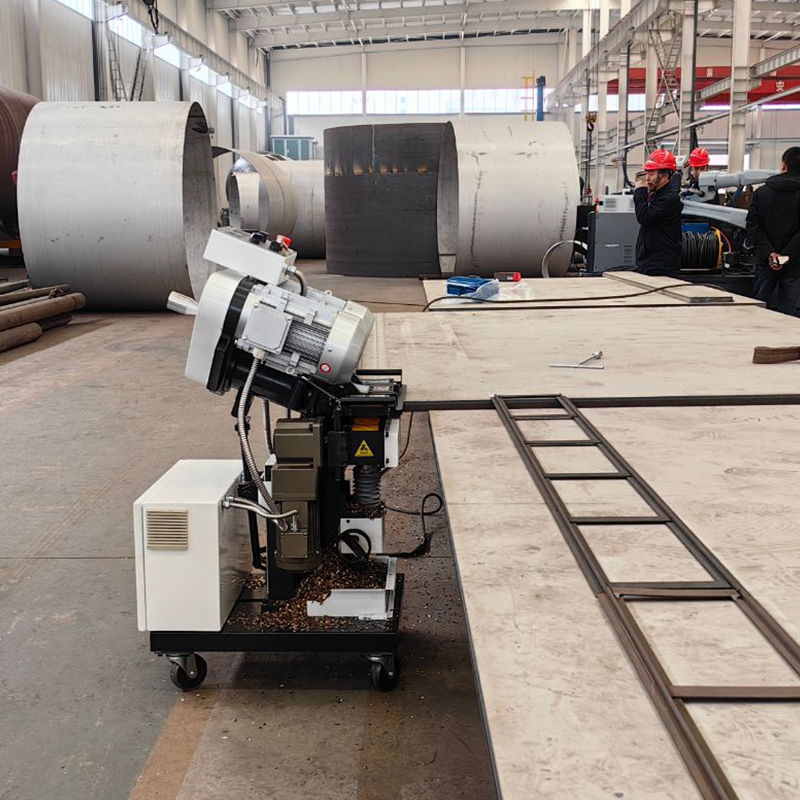

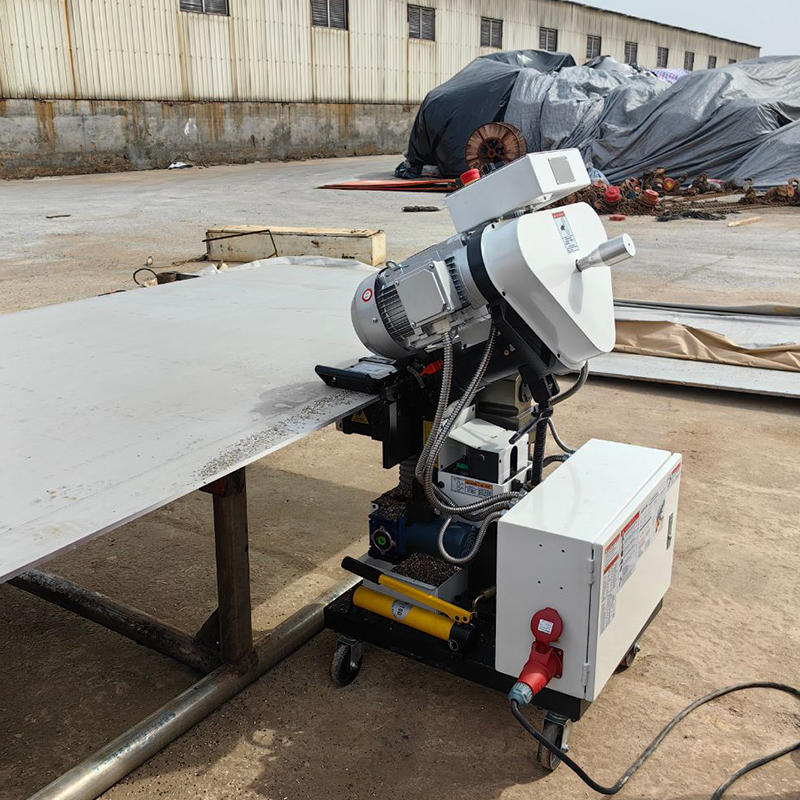

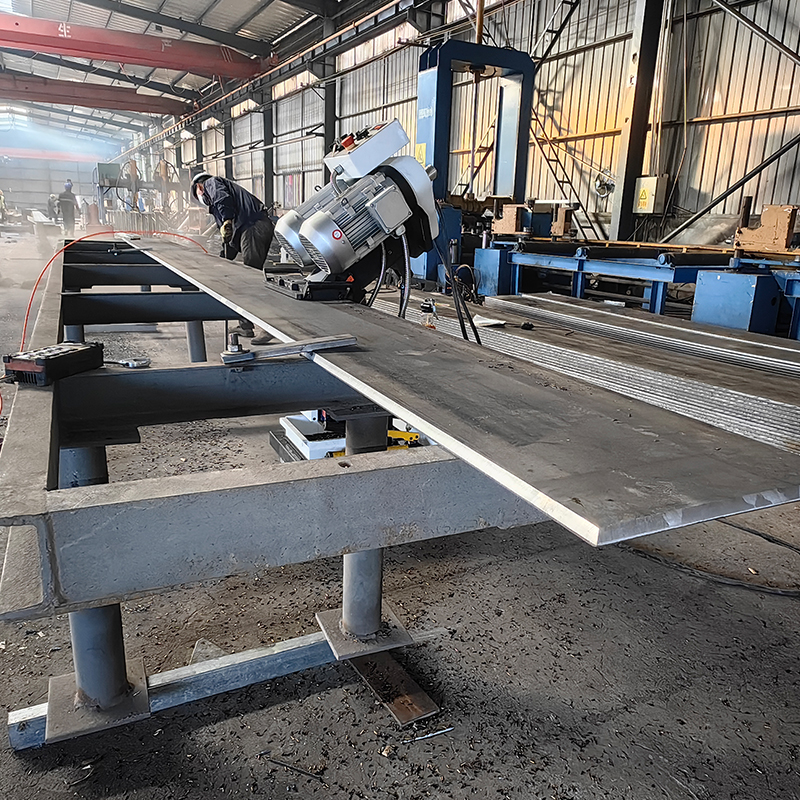

KQ-80A side milling machine, the equipment has the function of spindle speed control and feed speed control, can carry out welding beveling operation of 0~60 degrees on the plate. Processing bevel styles: V/Y-type bevel, X/K-type bevel (need to flip the workpiece), 0 degree side milling. Mainly used in steel structure, pressure vessel, bridge, petrochemical, shipbuilding and other fields. It can be used in field construction or in factory workshop, covering a small area and easy to move.
| KQ-80 ATechnical Parameters | |
| power supply：AC380V 50Hz | Bevel angle：0°-60° |
| total power：6520W | Single Bevel Width：0-20mm |
| Motor speed：500-1050r/min | Bevel width：0-70mm |
| Feed rate:0-1500mm/min | Diameter of cutter plate：80mm |
| Clamping plate thickness：4-80mm | Table height：700mm |
| Clamping plate width：≥60mm | Walking Floor Area：800×800mm |
| Processing plate length：≥300mm | net weight：315Kg |
Advantages of KQ-80A double speed adjustable flat plate edge milling machine

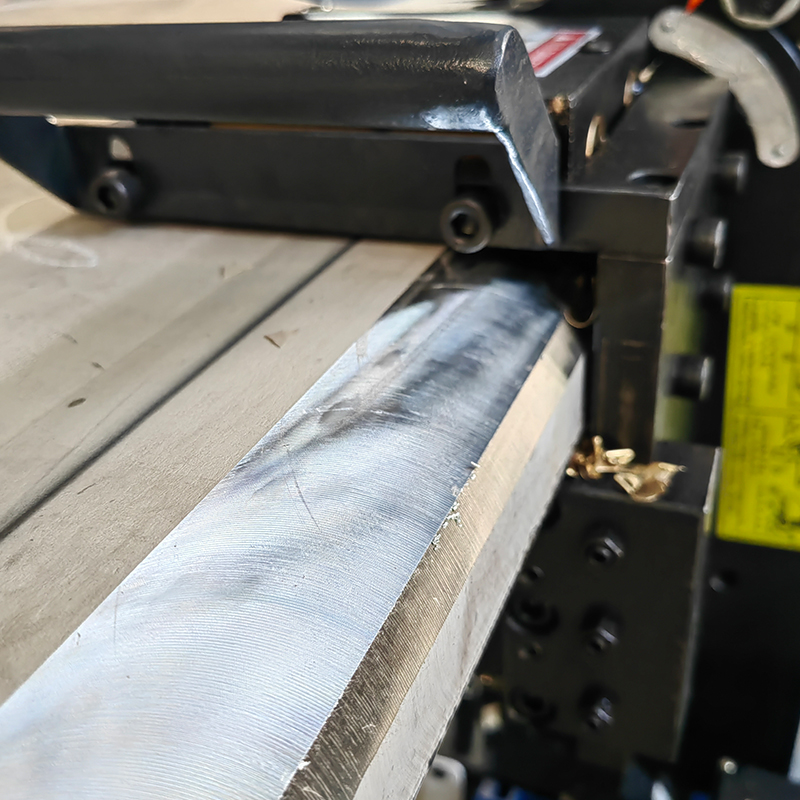

1. Cold cutting without deformation, smooth bevel without oxidation, bevel finish 3.2-6.3Ra, meet the pressure vessel welding requirements.
2. The bevel angle is adjustable between 0°-60°, and the clamping plate thickness can be up to 80mm.
3. 24V control box and 380V electrical box are designed separately.
4. Electric clamping device is easy to operate.
5. The rear position of feed motor is favorable for narrow plate processing.
6. Milling bevel with dense tooth milling disk.

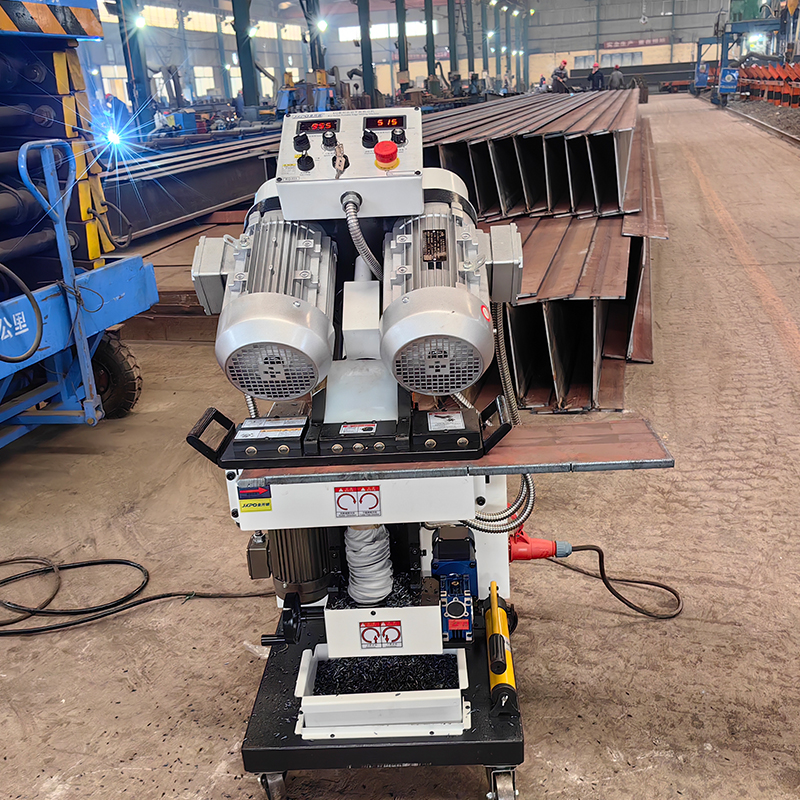

7. Control panel digital display, easy to operate.
8. KQ-80A edge milling machine can process V/Y/X/K bevels of low carbon steel, stainless steel, manganese steel, high strength steel, titanium, nickel, aluminum alloy and other metal plates.
9. It is widely used in welding and cutting manufacturing fields such as steel structure, pressure vessel, engineering machinery, head processing, machining, shipbuilding, metallurgy, electric power tower, petrochemical equipment, wind power generation, and so on.
