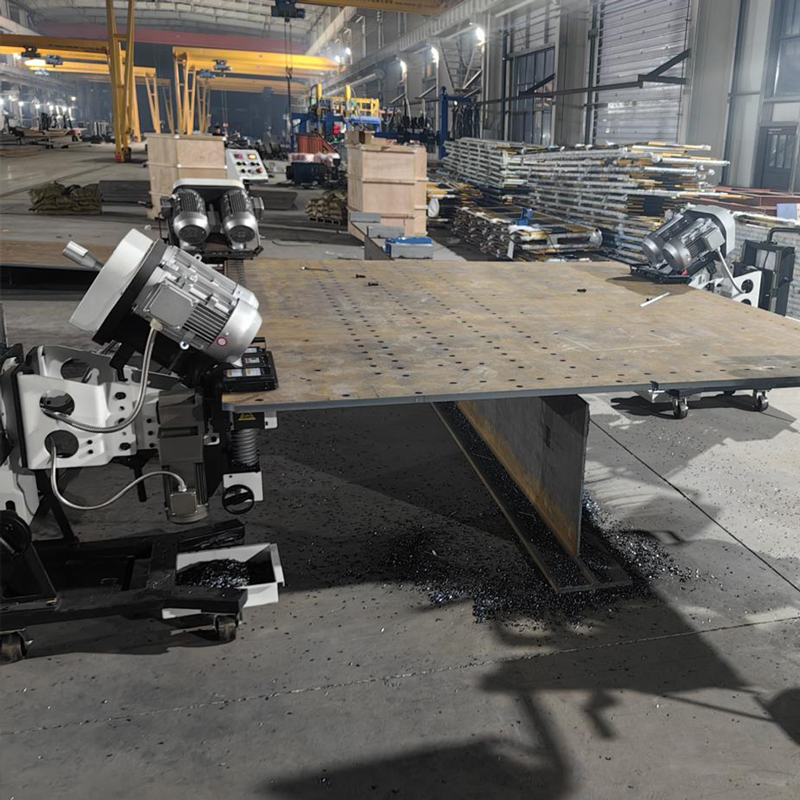

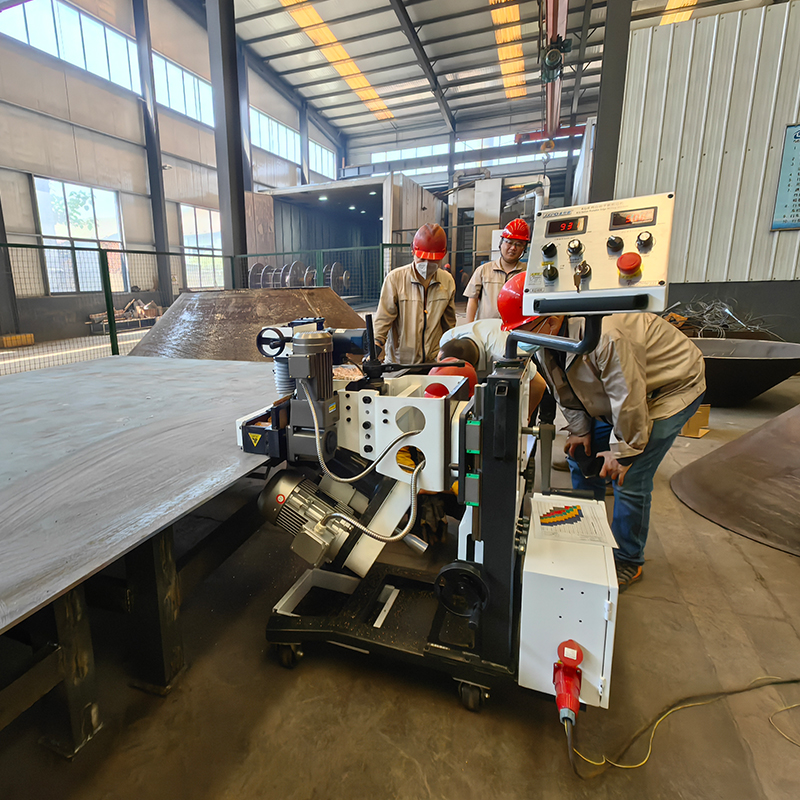

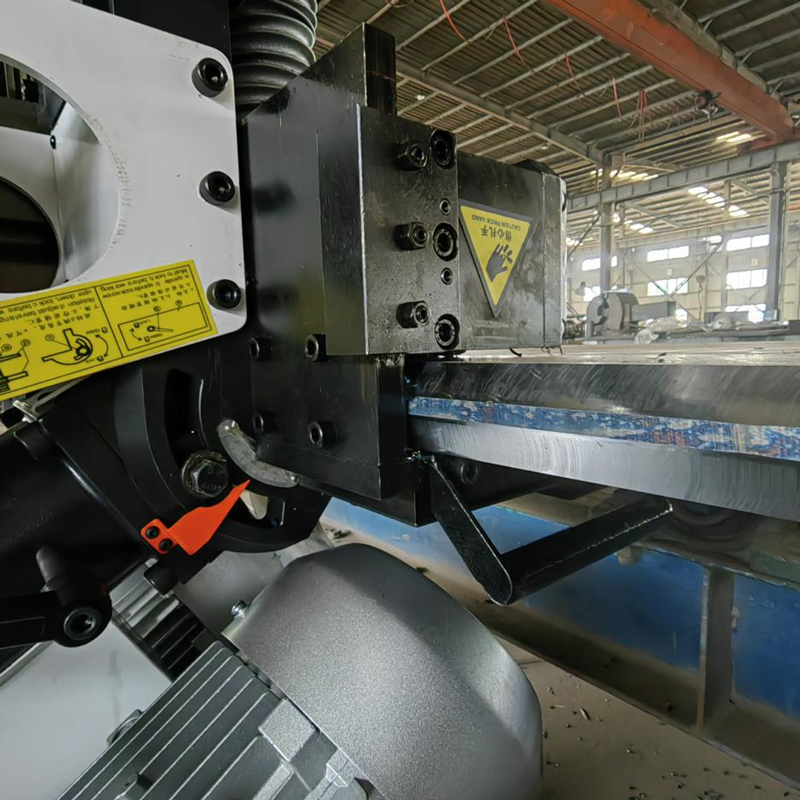

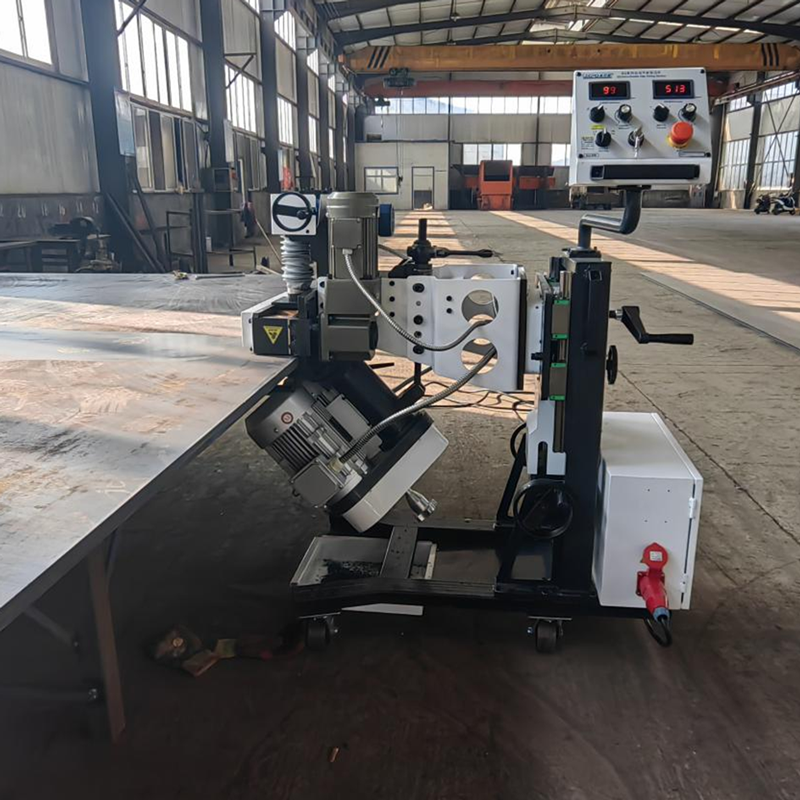

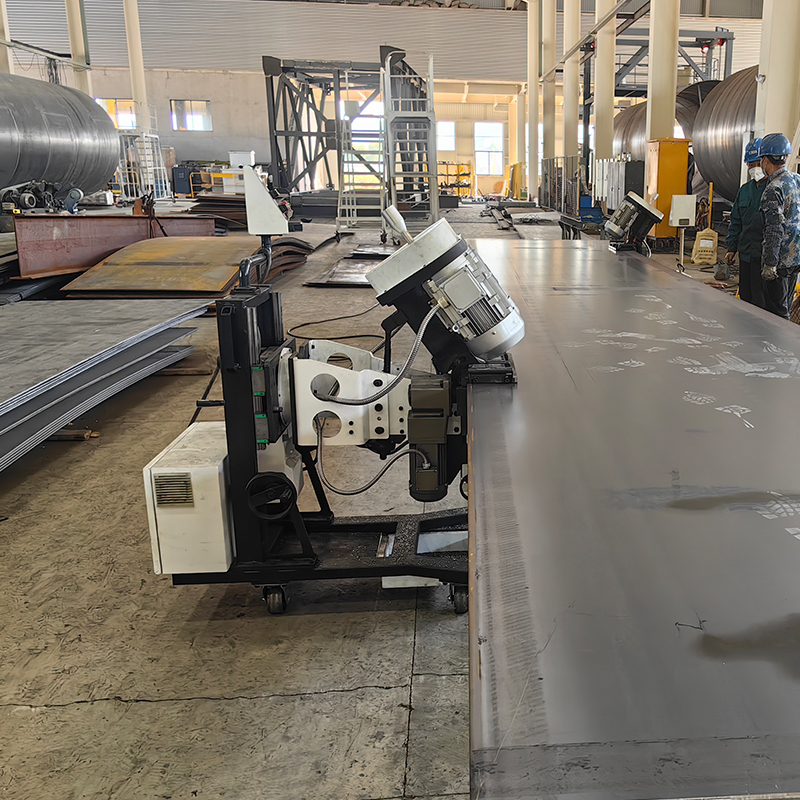

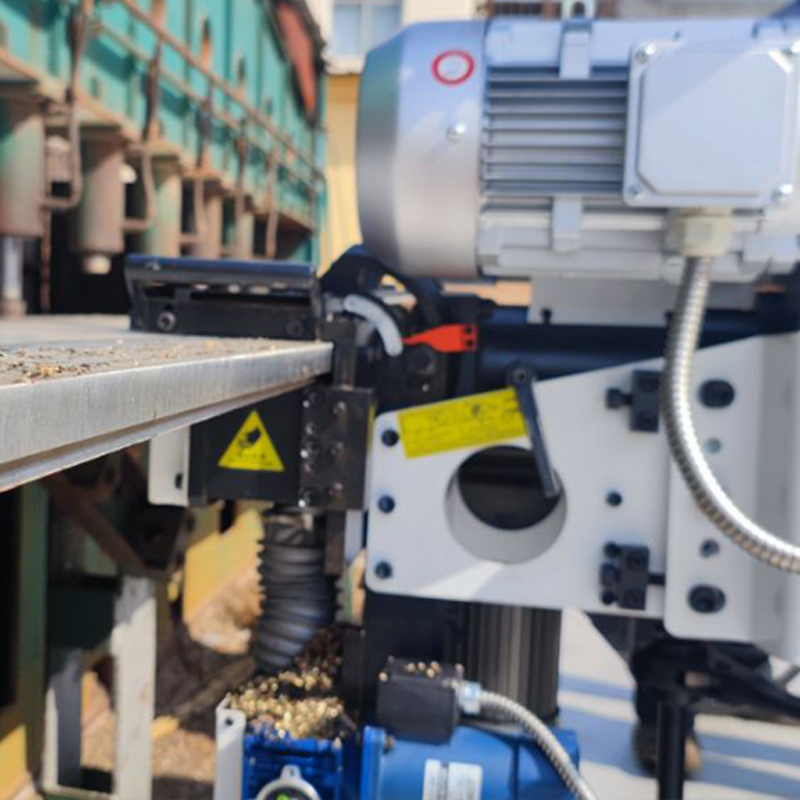

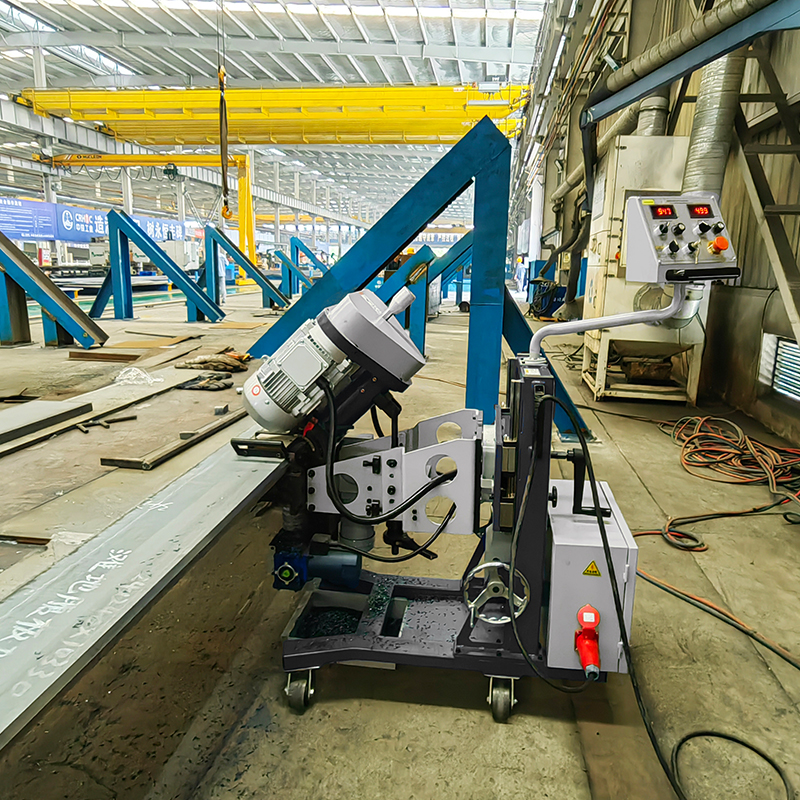

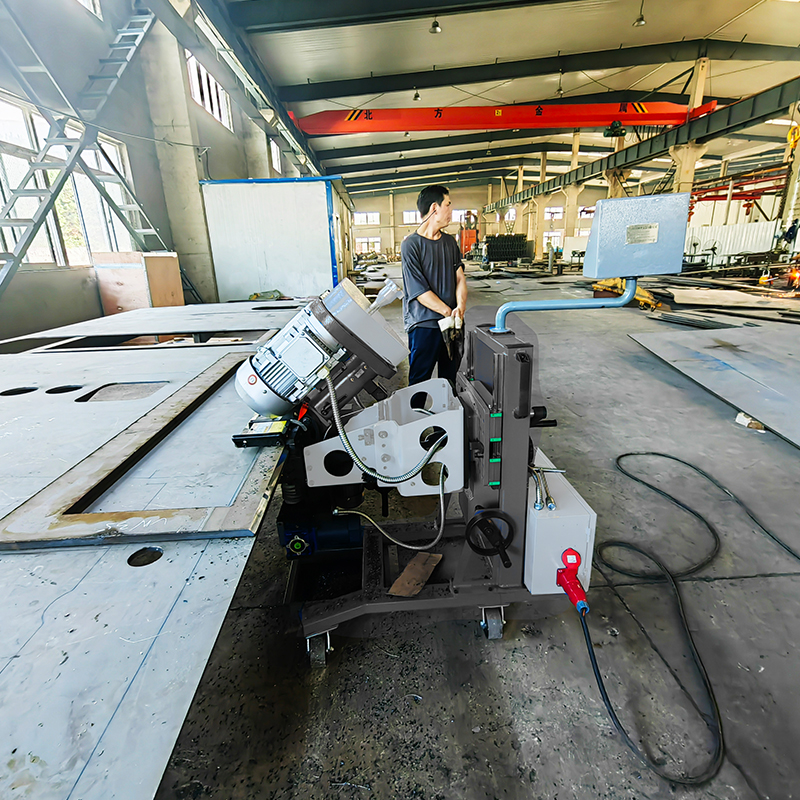

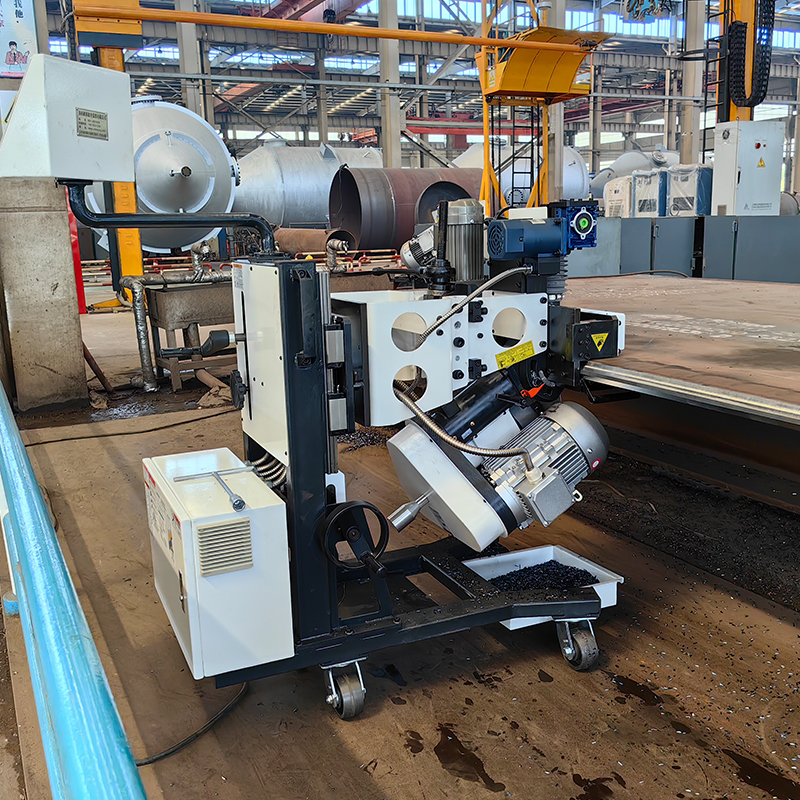

KQ-80R Double-side Double-speed Plate Edge Milling Machine
Specification Model: KQ-80R
Total power：6520W
Spindle speed：500~1050r/min
Feed speed：0~1500mm/min
Clamping plate thickness: 4~80mm
Bevel angle：0~±60°
Bevel width: 0~70mm
Description
marker
Product Details
KQ-80R double-sided steel plate milling machine, we are brand new for customers to create a double-sided bevel processing milling machine, processing double-sided bevel without turning the steel plate, but also can be processed separately up and down the bevel, easy to realize double-sided bevel. This type of milling machine can process V/Y-type bevel, X/K-type bevel, 0° flush bevel, which is widely used in steel structure processing, pressure vessel manufacturing, engineering machinery, storage tanks, coil plate and other industries.
| KQ-80R Technical Parameters | |
| power supply：AC380V 50Hz | Bevel angle：0°-±60° |
| total power：6520W | Single Bevel Width：0-20mm |
| Motor speed：500-1050r/min | Bevel width：0-70mm |
| Feed rate:0-1500mm/min | Diameter of cutter plate：80mm |
| Clamping plate thickness：4-80mm | Table height：700mm |
| Clamping plate width：≥60mm | Walking Floor Area：800×800mm |
| Processing plate length：≥300mm | net weight：380Kg |
Advantages of KQ-80R Double-side Double-speed Plate Edge Milling Machine
1. Cold cutting without deformation, smooth bevel without oxidation, bevel finish 3.2-6.3Ra, meet the pressure vessel welding requirements.
2. The bevel angle is adjustable from 0° to ±60°, and the clamping plate thickness is up to 80mm.
3. 24V control box and 380V electrical box separate design
4. The electric clamping device is easy to operate.

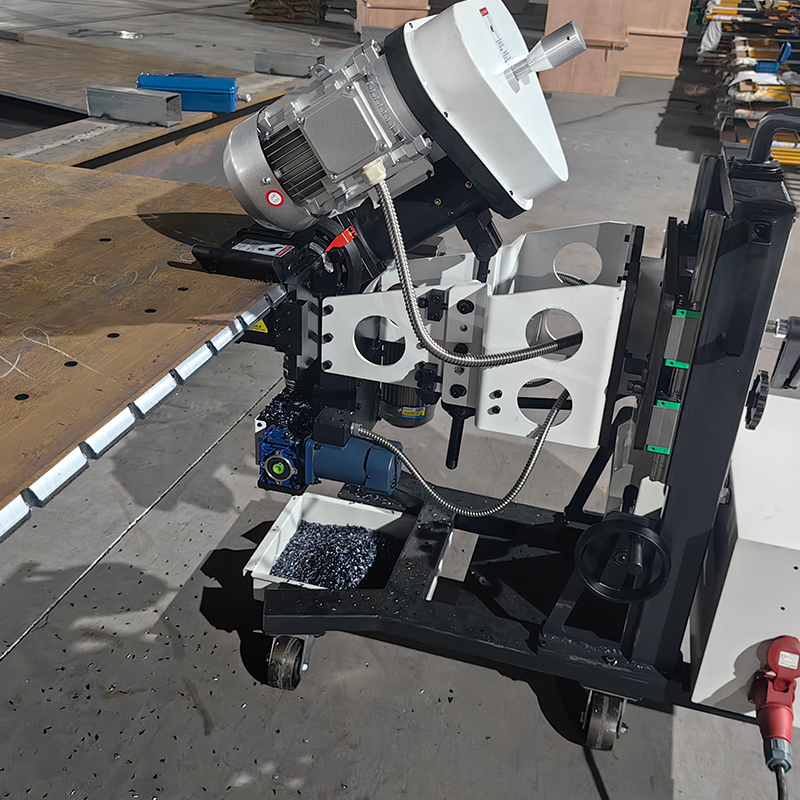

5. No need to turn over the steel plate to turn the machine head can be processed double-sided beveling, saving time and labor.
6. The backward position of feed motor is favorable for narrow plate processing.
7. Milling bevels with dense tooth milling disk.
8. The control panel is simple and the marking is clearly visible.
9. KQ-80R type milling machine can process V/Y/X/K type bevels of mild steel, stainless steel, manganese steel, high strength steel, titanium, nickel, aluminum alloy and other metal plates.
10. It is widely used in welding and cutting manufacturing fields such as used in steel structure, pressure vessel, engineering machinery, head processing, machining, shipbuilding, metallurgy, electric power tower, petrochemical equipment, wind power generation, and so on.
