Portable tabletop pipe cutting and beveling machine
Product Details D series mobile pipe cutting and beveling machine, for small and medium batch pipe prefabrication processing research and development of cutting and beveling machine, is a mobile economic pipe cutting and beveling machine tools. It can be used for pipe prefabrication processing...
Description
marker
Product Details

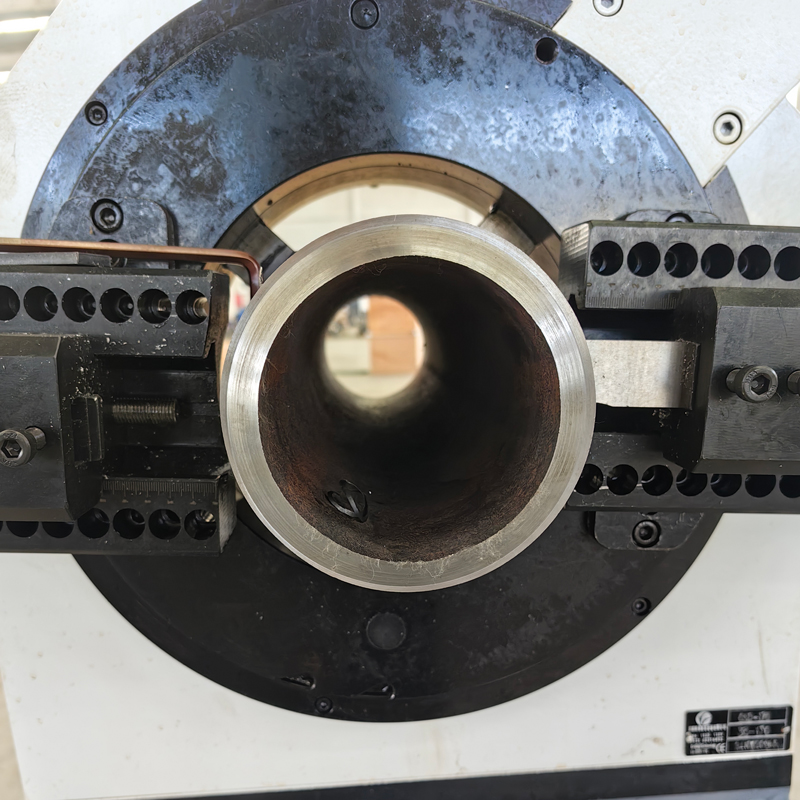

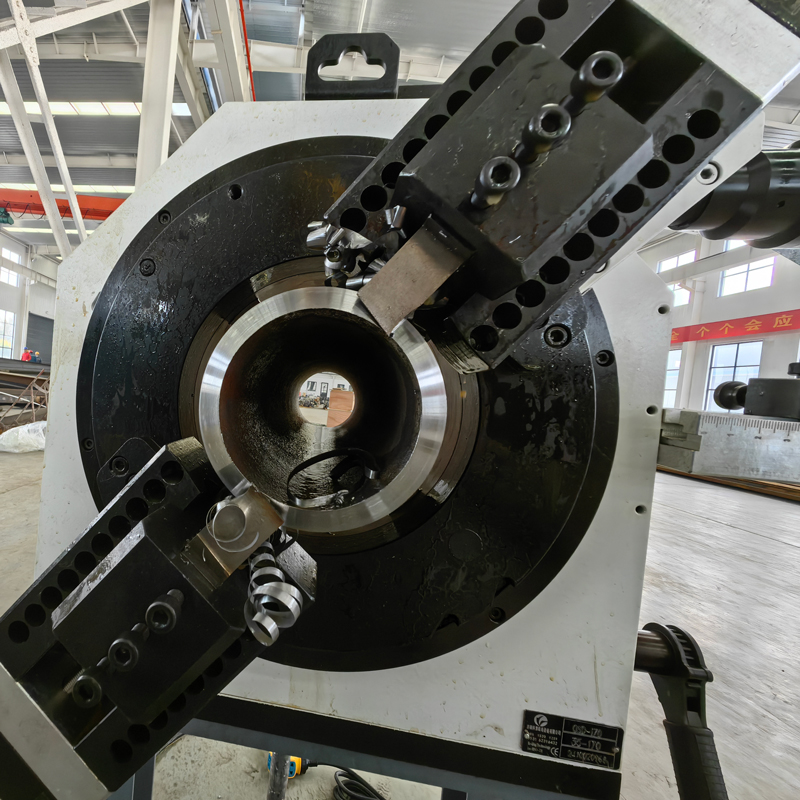

D series mobile pipe cutting and beveling machine, for small and medium batch pipe prefabrication processing research and development of cutting and beveling machine, is a mobile economic pipe cutting and beveling machine tools. It can be used for pipe prefabrication processing in workshop, and it is also convenient for pipe cutting and beveling processing in field construction site. The host can be fixed on the site of the existing operating table, can also be equipped with our trolley-type mobile worktable, its design is innovative, powerful, easy to operate, very wide range of applications. It is a combination of portable and fixed pipe cutting and beveling equipment functions and applications, making fast installation and fast cutting and repeatable cutting possible, with other accessories, it can also become a pipe cutting machine or pipe welding equipment, a variety of uses make the best use of it.
Technical parameters
| Model Specification | Processing range ODmm | Bevelwall thickness mm | Cutter speed rpm | Motor power KW | |
| Electrically operated | numerical control | ||||
| D4 | D4A | Φ20-120 | ≤20 | 0-33 | 1.43 |
| D6 | D6A | Φ35-170 | ≤30 | 0-23
|
1.43 |
| D9 | D9A | Φ76-220 | ≤30 | 0-18 | 1.43 |
| D13 | D13A | Φ168-320 | ≤30 | 0-14 | 1.43 |
| D16 | D16A | Φ273-420 | ≤30 | 0-14 | 1.43 |
| D20 | D20A | Φ377-520 | ≤30 | 0-13 | 2.0 |
| D24 | D24A | Φ457-620 | ≤30 | 0-13 | 2.0 |
| D30 | D30A | Φ559-720 | ≤30 | 0-13 | 2.0 |
Product Features
1. Complete cold cutting method, without changing the tube material.
2. One clamping, cutting and beveling at the same time.
3. Multi-point synchronized clamping, more efficient pipe installation.
4. Automatic centering mechanical clamping system, high installation precision.
5. Automatic knife feeding, speed adjustable.
6. Wider processing range: from 20-720mm can be selected processing.
7. Can be processed U-type, V-type, J-type and double V-type and composite types of various forms of bevel.
8. One-piece casting body, equipment rigidity and strength is better, making high-speed cutting possible.
9. The main body and saw blade type pipe cutter through the match, replace the knife frame and power head can be transformed into a pipe cutter.
10. Optional pipe welding gun and other accessories, can be line into a set of all-round automatic pipe welding equipment.
11. CNC type optional Delta servo motor, PLC control system operation, cutting parameters can be preset.
